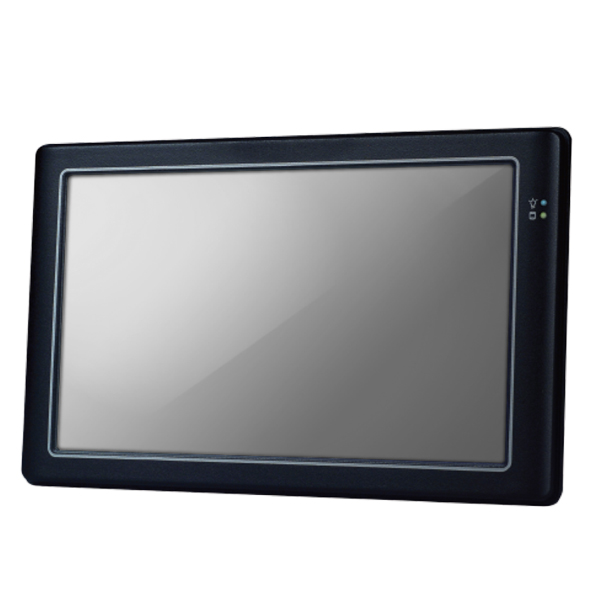

9" Panel PC DMP Vortex86DX3 1GHz, 2GB Memory, IP65 Front w/ 110/220V External Power Adapter (Model: XPC0900X3-2G)

9.0" 1024 x 600 300nits Panel PC DMP Vortex86DX3 1GHz Onboard , 2GB DDR3 Memory on board, +5VDC, IP65 standard front panel, waterproof and dustproof, and wide operating temperature range from -20C to 60C (-4F to 140F) 110/220V external power adapter. CF Card Support, support Linux, Win CE, Win XP, Win 7, Windows Embedded Standard

9.0" 1024 x 600 300nits Panel PC DMP Vortex86DX3 1GHz Onboard , 2GB DDR3 Memory on board, +5VDC, IP65 standard front panel, waterproof and dustproof, and wide operating temperature range from -20C to 60C (-4F to 140F) 110/220V external power adapter. CF Card Support, support Linux, Win CE, Win XP, Win 7, Windows Embedded Standard

Main Feature

  • 9" TFT LCD with resistive touchscreen
  • DM&P Vortex86DX3-1GHz Onboard
  • 1GB/ 2GB DDR3 System Memory Onboard
  • Fanless and Low Power Consumption
  • Metal Chassis with Compact Design
  • CF Card, Micro SD slot (Optional)
  • 1G / 2G Flash Memory onboard (Optional)
Inquiry/Quote Request
XPC0900X3-2G
  • Specifications
  • Download
  • Contact Sales
LCD Display
Type WSVGA TFT LCD
Size 9”
Resolution (Pixel) 1024x600
Colors 262,144
View Angle Vertical 120° / Horizontal 140°
Brightness 300 cd/m2
Backlight Life 18,000 hrs
Contrast Ratio 500 : 1
System Specs
CPU DM&P Vortex86DX3-1GHz
Cache L1: 16KB I-Cache, 16KB D- Cache / L 2: 256KB Cache
Memory 1GB / 2 GB DDR3 Memory Onboard
Watchdog Timer Software Programmable from 30.5u to 512 Seconds x 2 Sets
Serial Port RS-232 / 422 / 485 x 1
USB Ports USB Ports (Version 2.0) x 2
Ethernet Integrated 10/100M Ethernet
Audio HD Audio-Realtek ALC262 CODEC
Internal Drives CF Card; Micro SD slot, 1G / 2G Flash Memory onboard (Optional)
Touch Screen Type Analog Resistive
Expansion S lot None
Power Requirement Single Voltage +5VDC ( 5A )/ Multi Voltage +8~+35VDC ( 8A )
Power Consumption 20W (Max.)
Operating Temperature 0~+50°C (32~+122°F) / -20~+60°C (-4~+140°F) Optional & CPU down to 800MHz (-I)
Storage Temperature -30~ +70°C (14 ~+158°F)
Operating Humidity 0% ~ 90% Relative Humidity, Non-Condensing
Operating System Linux, Win CE, Win XP, Win 7, Windows Embedded Standard
Dimensions 236.6x146x35mm (9.31x5.75x1.38 inches)
Weight 790g
Certificate CE / FCC / VCCI / Vibration / Shock / IP65 (Front Panel)
