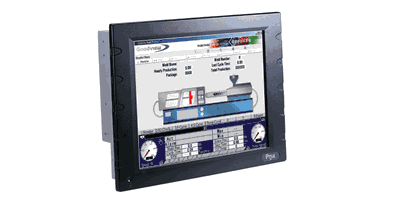

APX-312B/ 315B

CPU Type	Intel?Celeron/P-III processors
CPU Voltage	Auto Detect
CPU Frequency	Up to 1GHz (.18 pocess)
Chipset	VIA VT8604
DRAM	1 x 168-pin DIMM up to 512MB
Cache	Built-in CPU
BIOS	Phoenix-Award PnP, Firmware HUB VGA BIOS, 4MB
I/O Chipset	Built-in VIA VT82C686B, Winbond W83977
IDE Interface	2 x EIDE (UDMA-33/66/100)
Serial Port	4 x 16550 UART, COM2 for RS232/422/485 One Internal COM4 reserved for touch panel
Parallel Port	1 x parallel (SPP/EPP/ECP)
Watchdog	16 level Watchdog Timer selectable w/ reset/NMI
CMOS	Built-in chipset with external battery
Keyboard	PS/2 (Mini DIN connector)
Mouse	PS/2 (Mini DIN connector)
Speaker	Internal buzzer
VGA	Built-in VIA VT8604
LAN	Realtek RTL8139C, 10/100 Mbps Ethernet 1 x RJ-45 Jack, supports Wake-on-LAN with ATX power
SSD	32-pin socket supports DOC up to 288MB (Optional)
USB	4 x USB 1.1
Hardware Monitor	Voltage, CPU temp. & cooling fan
Green Function	Controlled by hardware and software
LCD Display	15" XGA / 12.1" SVGA panel
Touch Screen	Analog resistive (optional)
Drive Bays	1 x 3.5" HDD (Internal)
Power Supply	ATX 100W
Construction	Electro Galvanized Steel chassis, aluminum front bezel
System Weight	5.0 kg (11 lb)
Dimension	370 x 290 x 70mm (14.57" x 11.42" x 2.76")
System Application	WinCE.Net, Windows 9X/ NT/ 2000/ XP, Linux

Order No	Order Info
APX-312B-AG0	12.1" Gray barebone system with AG glass
APX-3120B-AG1	12.1" Gray barebone system with touchscreen
APX-3150B-AG0	15" black barebone system with touchscreen
