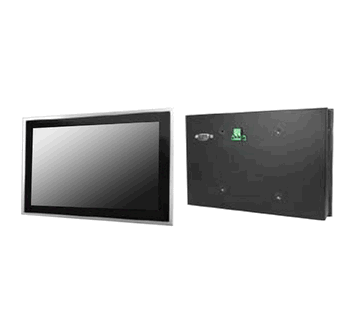

7" Wide Chassis Panel-PC 800x480, LED-400nits Mainboard w/ Intel Atom E3815 CPU (Model: EMCW0700-AT-PoE-V1)
7" Wide Chassis Panel-PC 800x480, LED-400nits Mainboard w/ Intel Atom E3815 CPU (Model: EMCW0700-AT-PoE-V1)
Main Feature
- Modularize mechanical design provides flexible product configuration and easy maintenance
- Optional build-in touch screen for interactive application
- Available with auto-brightness sensor offers application in day and night
- VGA connector with optional AV,SV,AV-Looping
- Complete custom design/solution for OEM customers
X
Inquiry/Quote Request
- Specifications
- Download
- Contact Sales
| Cell Type / Glass Surface | TFT LCD / Black Anti-Glare, low refection coating | ||
| Aspect Ratio / Size | Wide / 7" viewable diagonal area | ||
| Active Area / Pixel Pitch | 152.40(H) x 91.44(V) mm / 0.1905(H) x 0.1905(V) mm | ||
| Native Resolution / Colors | 800(H) x 480(V) / 262 K | ||
| Brightness / Contrast | 400 cd/m2 (typ) / 500 : 1 | ||
| Response Time | ≤ 30 ms | ||
| Viewing Angle (typical) | H. 130o (- 65o ~ + 65o) , V. 110o(- 60o ~ + 50o) | ||
| Light Source | LED backlight, Long life, 35,000 hrs (typ) | ||
| Input Sources | PC System | Signal | Analog RGB (0.7/1.0 Vp-p, 75 ohms) |
| Sync | Separate Sync, Composite Sync, Sync On Green | ||
| Frequency | Fh : 30 - 82Khz , Fv : 50 -75Hz | ||
| Audio System | 2W speaker x 2 | ||
| Input Terminals | 1 x VGA (15 Pin Female D-Sub) , 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug | ||
| Convenient Features | Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B) | ||
| OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing) | |||
| Power | 12V DC in | ||
| Power Consumption | Operation / Power Saving | 9.625 watt , < 2 watt (Support DPMS) | |
| Operating Condition | Temperature / Humidity | 0oC ~ 50oC (32oF ~ 122oF) , 10% ~ 90% (no condensation) | |
| Storage Condition | Temperature / Humidity | - 20oC ~ 60oC (- 4oF ~ 140oF) , 10% ~ 90% (no condensation) | |
| Certifcation | FCC , CE | ||
| Dimensions | Physical | Please refer to Drawing | |
| Carton | W x H x D = TBD | ||
| Weight | N.W. / G.W. | 3 Kgs / 4 Kgs | |
| Container Loaded | 20ft / 40ft / 40ft HQ | TBD (Sets , By pallet) | |
| Options | Touch | Video / TV | Enhanced Panel | Others |
| Resistive touch | SV + AV | Panel with LED backlight | Digital Signage(Stand alone) | |
| Capacitive touch | SV + AV + AV_Looping | High brightness panel | Networking Digital Signage | |
| SAW touch | SV + AV + TV | Wide Temperature | Motion Sensor | |
| Infrared touch | Sunlight Readable | Light Sensor | ||
| Protected glass | Auto-Dimming |
PC FEATURES:
- 100(W) x 108.5(D) mm small form factor
- Intel Atom processor E3815
- 1 x SO-DIMM DDR3L slot
- 1 x GbE LAN (Realtek RTL8111G)
- 1 x SATA II 3Gb/s port
- Android / Linux support
| Form Factor |
| Proprietary |
| 100(W) x 108.5(D) mm |
| Operating Properties |
| Operating temperature: 0°C to 50°C |
| Operating humidity: 0%-90% (non-condensing) |
| Non-operating temperature: -40°C to 70°C |
| Non-operating humidity: 0%-95% (non-condensing) |
| CPU |
| Intel Atom processor E3815 |
| Single core, 22nm |
| 1.46GHz |
| 512KB cache |
| 5W TDP |
| Socket |
| 1 x BGA 1170 |
| Memory |
| 1 x SO-DIMM slot |
| DDR3L memory Up to 8GB 1066Mhz |
| Flash Memory |
| 4GB of eMMC memory |
| LAN |
| 1 x GbE LAN port (Realtek RTL8111G) |
| Video |
| Intel HD Graphics |
| SATA |
| 1 x SATA II 3Gb/s port |
| Expansion Slots |
| 1 x Full-size Mini-PCIe slot |
| Internal I/O |
| 1 x RTC header |
| 1 x System fan header |
| 1 x LPC (80h) header |
| 1 x LVDS connector |
| 1 x USB 2.0 header |
| 1 x SATA power connector |
| 1 x System power connector |
| Rear I/O |
| 1 x RJ45 |
| 1 x USB 3.0 |
| 1 x USB 2.0 |
| 1 x DC-in |
| 1 x MicroSD card slot 1 x Serial |
| 1 x HDMI v1.4 |
| OS Supported |
| Linux, Android and Windows-8.x or 10.x |
| Power Supply |
| AC 100~240V |
| 12V DC-In |
