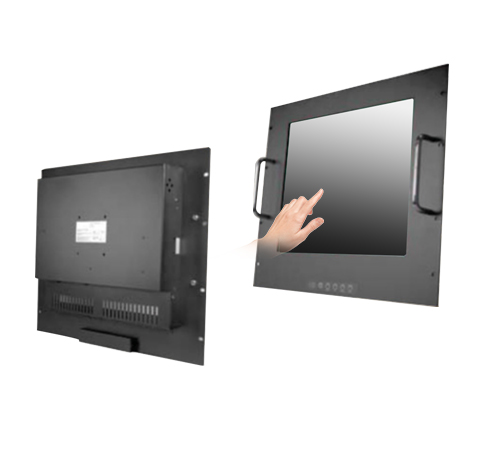

19" LCD Monitor 1280x1024, 300nits, Front OSD Integrated Intel *MS-98E1 w/ 5 Wire Resistive Touch (Model: ERM1900PC-i5-TR-V1)
19" LCD Monitor 1280x1024, 300nits, Front OSD. VESA Mounting & Built in Power Supply with 5 Wire Resistive Touch Screen and Integrated Intel *MS-98E1
Main Feature
- Modularize mechanical design provides flexible product configuration and easy maintenance
- Optional build-in touch screen for interactive application
- 2 independent displays with multiple video outputs (LVDS, HDMI, DVI-D, VGA)
- Supports DirectX 11.1 and Intel Clear Video Technology (up to 1080P)
- 3 SATA 3.0 ports for faster and high-capacity storage
- Supports m-SATA function by Mini-PCIe slot
- Plenty USB ports for more peripherals(USB3.0*4, USB2.0*4, Vertical Type USB2.0*1)
ERM1900PC-i5-TR-V1
- Specifications
- Download
- Contact Sales
Panel |
Cell Type / Glass Surface |
TFT LCD / Black Anti-Glare, low reflection coating |
Aspect Ratio / Size |
4:3 / 19" viewable diagonal area |
Active Area / Pixel Pitch |
376.3(H) x 301.1 (V) mm / 0.294(H) x 0.294(V) mm |
Native Resolution / Colors |
1280(H) x 1024(V) / 16.7 Million |
Brightness / Contrast |
300 cd/m2 (typ) / 800 : 1 |
Response Time |
^ 5 ms |
Viewing Angle (typical) |
H. 160° (-80° ~ + 80° ) , V 160° (-80° ~ + 80° ) |
Light Source |
CCFL, Long life, 50,000 hrs (typ) |
Power |
Built in Power Supply |
Environmental |
Operating Temperature
Operating Humidity |
0 ~70°C
Relative humidity 10% ~ 90% @40°C, Non-condensing |
Options |
Touch |
Enhanced Panel |
Others |
Resistive (With glass) |
High brightness panel |
WiFi |
Networking Digital Signage |
Capacitive |
Panel-LED Backlight |
Web Cam |
Rechargeable battery |
SAW |
Wide Temperature |
Motion Sensor |
|
Infrared |
Wide Viewing Angel |
Auto Light Sensor |
|
|
Sunlight Readable |
Auto-Dimming |
|
Display |
Viewing Size Image |
43" |
Active Display Area (mm) |
942.20 (H) x 530.60 (V) |
Pixel Pitch (mm) |
0.49005(H)x 0.49005(V) |
Resolution |
1920x1080 |
Contrast Ratio |
3000:1 (typ.) |
Color |
16.7M(6-bit+Hi-FRC) |
Brightness |
450nits |
viewing Angle |
-89-89 (H); -89-89 (V) |
Recommended Resolution |
1920 x 1080 @60Hz |
Signal Connector |
VGA, DVI |
Power |
Source |
AC90 to 260V |
Consumption |
64.18W typical, normal operation |
Management |
VESA DPMS Compliant |
|
Touch |
IR Touch |
Optional |
High Brightness |
1000,1500 |
Auto Dimming |
YES |
Power in |
DC24V |
Remote Control |
YES |
IO |
AV,HDMI,DP |
|
|
MS-98E1 Specs |
|
Processor
|
CPU |
C236 SKU |
H110 SKU |
|
7th/6th Gen Intel Desktop Kaby Lake/Skylake Xeon/i7/i5/i3/ Pentium/Celeron
Series Processor, Max 80W |
7th/6th Gen Intel Desktop Kaby Lake/Skylake Core i7/i5/i3/
Pentium/Celeron
Series Processor, Max 65W |
Frequency L2 Cache |
2.3GHz~4.0GHz (Depends on CPU) |
L2 Cache |
2M ~ 8M (Depends on CPU) |
CPU Type |
Socket (LGA 1151)
|
|
Chipset |
Intel C236 Express |
Intel H110
Express |
|
BIOS |
AMI |
Memory |
Technology |
Dual-channel DDR4 (ECC)
2133MHz/2400MHz
(7th Gen) |
Dual-channel DDR4 (non-ECC) 2133MHz/2400MHz
(7th Gen) |
Max. Capacity Socket |
Up to 32 GB |
|
Socket |
2 x 260-pin SO-DIMMs |
Display
|
Controller |
Intel HD Graphics |
Graphic Memory |
Shared system memory up to 1.7 GB
SDRAM
|
LVDS |
1 |
eDP |
N/A |
VGA |
1 |
DVI |
1 (DVI-D) |
HDMI |
1 |
DisplayPort |
N/A |
Multiple Display |
3 independent
displays |
2 independent displays |
Display Interface |
LVDS up to 1920 x 1200
HDMI up to 3840 x 2160
DVI-D up to 1920 x 1200
VGA up to 1920 x 1200 |
Ethernet |
Controller Controller |
1 x Intel I219-LM GbE-PHY
1 x Intel I211-AT PCIe GbE LAN
(Co-lay I210-AT) |
Audio |
|
Realtek ALC887 HD Audio Codec |
Super I/O |
Controller |
Fintek F81866AD-I |
H/W Monitor |
Watchdog Timer Smart Fan |
256-level Watchdog Timer Ye s |
TPM |
Controller |
Pin header |
I/O Interface
|
USB |
4 x USB 3.0 (4 x rear)
4 x USB 2.0 (2 x rear; 2 x internal)
1 x USB 2.0 (Vertical, internal) |
Serial |
5 x COM (1 x rear; 4 x internal)
COM1: RS-232/422/485, 0V/5V/12V
COM2/3/4/5: RS-232, 0V/5V/12V |
Parallel |
N/A |
PS/2 |
1 |
GPIO |
8-bits (4 x GPI, 4 x GPO), 5V |
Expansion Slot |
PCIe x 16 |
1 |
M2 |
1 x M key
(PCIe x4, SATA3.0
,2242) |
N/A |
|
M.2 Mini-PCIe |
1 x Full-size, mSATA
|
Storage |
SATA |
4 x SATA 3.0 |
3 x SATA 3.0 |
|
mSATA |
1 (shared w/ Mini-PCIe) |
Power Supply |
DC |
N/A |
|
ATX |
ATX-Power 24P, 12V-4P |
Environment |
Operating Temperature |
0 ~ 70°C |
Operating Humidity |
10 ~ 90%, non-condensing |
Storage Temperature |
-20 ~ 80°C |
Storage Humidity |
10 ~ 90%, non-condensing |
Form Factor |
Dimension |
170mm x 170mm (Mini-ITX) |
|
Weight EMC |
0.37 kg |
Certification |
EMC |
FCC, CE, RCM, VCCI, BSMI |
Software Platform |
OS Support |
Windows 7 (32/64-bit)
Windows 8.1 (64-bit)
Windows 10 (64-bit)
Linux Kernel 4.X, support Fedora 23(64Bit)
& Ubuntu 16.04 (64Bit) of Kaby Lake-S &
Skylake-S |
|
