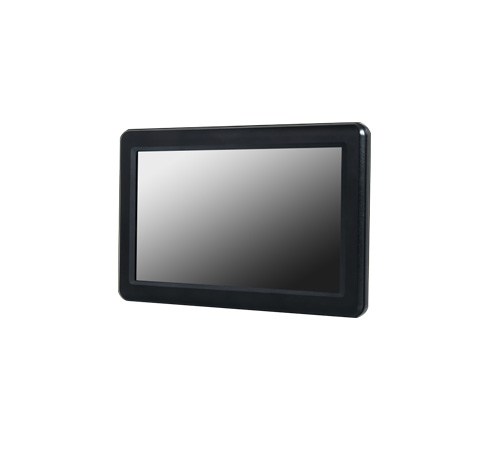

9" TFT LCD Metal Chassis Compact Design Panel PC w/ DM&P, 2GB RAM, POE, DC 12-24V (Model: XPCW090-POE)

9" TFT LCD Metal Chassis Compact Design Panel PC with DM&P, 2GB RAM, 3x USB, 1x Audio, 1x LAN, 2 Serial, POE, DC 12-24V

9" TFT LCD Metal Chassis Compact Design Panel PC with DM&P, 2GB RAM, 3x USB, 1x Audio, 1x LAN, 2 Serial, POE, DC 12-24V

XPCW090-POE
  • Overview
  • Specifications
  • Download

Features:

  • 9" TFT LCD with Resistive/PCAP Touchscreen
  • DM&P Processor 933 MHz / 1 GHz Onboard
  • 512MB / 1GB / 2GB System Memory Onboard
  • Compact Flash Type l/lI / SD Slot / SATA Slim
  • Fanless and Low Power Consumption
  • Metal Chassis with Compact Design
LCD DISPLAY
Type WSVGA TFT LCD
Size 9"
Resolution (Pixel) 1024x600
Colors 262,144
View Angle Vertical 120 / Horizontal 140
Brightness 300cd/m2
Backlight Life 20,000 hrs
Contrast Ratio 500: 1

CPU DM&P Vortex86DX2 933MHz / Vortex86DX3 1GHz
Cache DX2- LI: 16KB l-Cache, 16KB D-Cache / L2: 256KB Cache
DX3- LI: 32KB l-Cache, 32KB D-Cache / L2: 512KB Cache
Memory 512MB / 1GB / 2GB DDRII (DDRIII) Onboard
Watchdog Timer Software Programmable from 30.5u to 512 Seconds x 2 Sets
Serial Port RS-232/422/485x2
USB Ports USB Ports (Version 2.0) x 3
Ethernet Integrated 10/100M Ethernet(PoE optional) / Giga Ethernet (Optional)
Audio HD Audio-Realtek ALC262 CODEC
Internal Drives Compact Flash Type l/ll Slot, SD Slot (optional), SATA Slim
Touch Screen Type Analog Resistive (Standard) / Projected Capacitive Touch Panel (Option)
Expansion Slot WLAN Optional
Power Requirement +12~+24VDC
Power Consumption +24VDC@1A
Operating Temperature 0 ~ +50C (+32 ~ +122F) / -20C~+60C (-4 ~ +140F)
Storage Temperature -30~+70C (-22~+158F)
Operating Humidity 0% ~ 90% Relative Humidity, Non-Condensing
Operating System Linux, Win CE, Win XP, Win 7, Windows Embedded Standard
Dimensions 242xl56.5x44mm(9.68"x6.26"xl.76")
Weight 1.36 kg
Certificate CE, FCC, VCCI, Vibration, IP65 (Front Panel)
