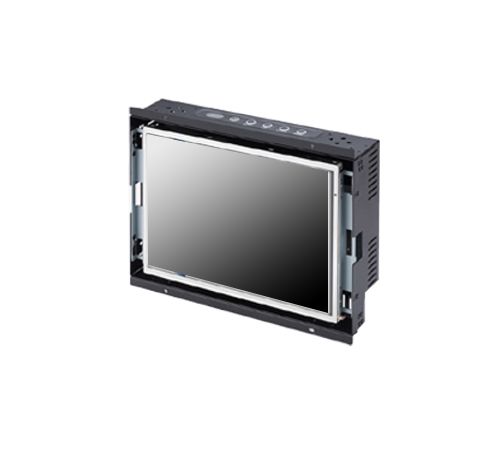

Open Frame, 4:3, 9.7", 1024x768, LED-350nits VGA, 12VDC-IN w/ Adapter (Model: EOP0970)
Open Frame, 4:3, 9.7", 1024x768, LED-350nits VGA, 12VDC-IN w/ Adapter
EOP0970
- Overview
- Specifications
- Download
| Cell Type |
TFT LCD |
| Glass Surface |
Black Anti-Glare, low reflection coating |
| Aspect Ratio |
4:3 |
| Size |
9.7" viewable diagonal area |
| Active Area |
196.608(H) x 147.456(V) mm |
| Pixel Pitch |
0.192(H) x 0.192(V) mm |
| Native Resolution |
1024(H) x 768(V) |
| Colors |
16.2 M |
| Brightness |
350 |
| Contrast |
500 : 1 |
| Response Time |
≤ 35 ms |
| Viewing Angle (typical) |
H. 140°(- 70°~ + 70°) , V. 130°(- 65°~ + 65°) |
| Light Source |
LED backlight, Long life, 35,000 hrs (typ) |
|
| |
| INPUT SOURCES |
| PC System |
Signal |
Analog RGB (0.7/1.0 V, 75 ohms) |
| Sync |
Separate Sync, Composite Sync, Sync On Green |
| |
Frequency |
F: 30 - 82Khz , F: 50 -75Hz |
| Audio System |
2W speaker x 2 |
|
| |
| CERTIFICATION |
| FCC , CE |
| INPUT TERMINALS |
| 1 x VGA (15 Pin Female D-Sub) , 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug |
| CONVENIENT FEATURES |
| Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B) , OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing) |
| POWER |
| 12VDC-IN w/ Adapter |
| POWER CONSUMPTION |
| Operation / Power Saving |
8.3 watt , < 2 watt (Support DPMS) |
| OPERATING CONDITION |
| Temperature / Humidity |
0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation) |
| STORAGE CONDITION |
| Temperature / Humidity |
-30°C ~ 80°C (-22°F ~ 176°F) , 10% ~ 90% (no condensation) |
| DIMENSIONS |
| Physical |
|
| Carton |
W x H x D = TBD |
| WEIGHT |
| N.W. / G.W. |
3 Kgs/ 4 Kgs |
| CONTAINER LOADED |
| 20ft / 40ft / 40ft HQ |
TBD (Sets , By pallet) |
|
| |
| TOUCH |
VIDEO INPUT |
ENHANCED PANEL |
POWER |
OTHERS |
| Resistive Touch |
| High Brightness Panel |
24V DC-IN |
Motion Sensor |
| Projected Capacitive Touch |
| Sunlight Readable |
9~36V DC-IN |
Light Sensor |
| Infrared Touch |
| Wide Viewing Angle |
48V 72V DC-IN |
VR-knob Dimming |
| Protected Glass |
| Wide Temperature |
90V 125V DC-IN |
RS232 Remote On/Off |
| Optical Bonding |
| UV Film |
110V 220V DC-IN |
Military Connector: MIL 38999 |
| |
| Anti-Vandal |
|
Metal Connector: M12 / M16 |
| |
| |
|
Stainless 316 Enclosure |
|
