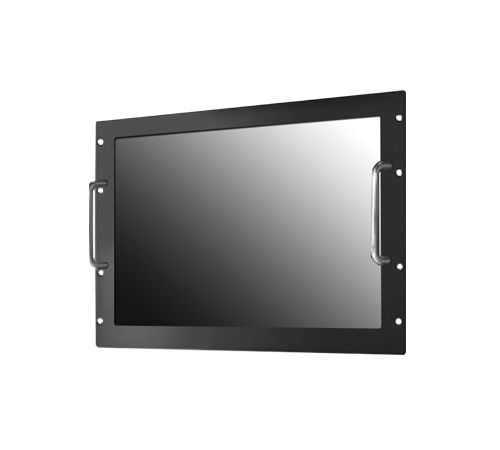

8U 20.1" 300nits Rack Mount with VGA, DVI and 100-240VAC, Rear OSD w/ Auto Signal & Power On/Off (Model: MNP820C)
8U 20.1" 300nits Rack Mount (with 3mm front bezel) / VESA Mount with VGA, DVI and 100-240VAC, Rear OSD with Auto Signal and Power On/Off
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| The MNP820C 8U Rack Mount 20 Inch LCD Monitor is a professional-grade display designed for industrial, control room, server rack, and equipment monitoring applications. Featuring a compact 8U rack-mount chassis and a 20-inch LCD screen, this monitor provides a practical and space-efficient display solution for demanding rack-mounted environments. |
| Built for reliable operation, the MNP820C can be integrated into standard equipment racks and control cabinets where space, durability, and convenient access to display controls are important. Its rack-mount design makes it suitable for a wide range of applications, including industrial automation, security monitoring, data centers, machine control, transportation systems, and military or rugged computing environments. |
Features: |
|
| Display | Viewing Size Image | 20.1" |
| Active Display Area (mm) | 410.80 (H) x 308.50 (V) | |
| Pixel Pitch (mm) | 0.255 (H) x 0.255(V) | |
| Resolution | 1600 x 1200 | |
| Contrast Ratio | 800 : 1 (typ.) | |
| Color | 16.7M | |
| Brightness | 300 cd/㎡ | |
| Viewing Angle | -89~89 (H) ; -89~89 (V) | |
| Recommended Resolution | 1600 x 1200 @ 60Hz | |
| Signal Connector | VGA, DVI | |
| Power | Source | 100-240VAC power input |
| Consumption | 11.15W typical, normal operation | |
| Management | VESA DPMS Compliant |
