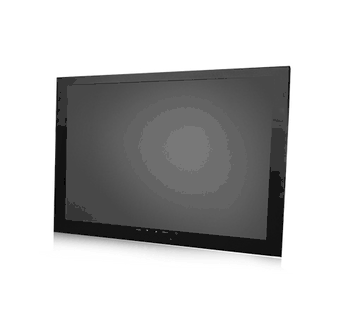

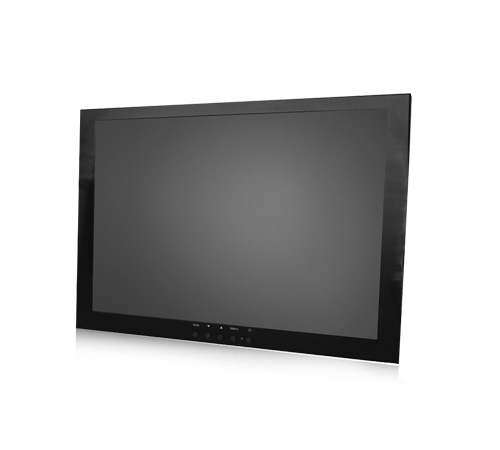

8U 23.8" Wide FHD LCD Rack Mount Industrial Monitor DVI-D, VGA, audio input 2x2watts stereo speakers with Touch (Model: ANP8238-TR)
8U 23.8' 1920 x 1080 WIDE FHD LCD Rack Mount Industrial Monitor DVI-D, VGA, audio input 2x 2watts stereo speakers with Resitive Touch (Model: ANP8238-TR)
Main Feature
- Compact 19 inch rack mountable with 8U height
- 23.8 inch widescreen LCD panel
- 1920 x 1200 WUXGA Ultra high resolution
- Support FHD with 1080p resolution
- DVI-D, VGA, Audio input
- Heavy duty steel chassis with hardness glass protect screen
- Front osd control buttons to optimized display
- Build in 2x 2watts stereo speakers
ANP8238-TR
- Overview
- Specifications
- Download
- Contact Sales
| LCD CHARACTERISTICS |
| Screen Size |
23.8" Wide |
| Backlight Type |
LED |
| Resolution |
1920x1080 ( up to 1920x 1200 ) |
| Contrast Ratio |
1000:1 |
| Brightness ( cd/m2 ) |
250 |
| View Angles ( H/V ) |
178/178 |
| Pixel Size ( HxV ) mm |
0.2745x0.2745 |
| Max. Color |
16.7M |
| MTBF ( Hrs. ) |
50,000 |
|
| |
| INPUT SIGNALS |
| DVI-D |
DVI-D 24Pin Connector (Female) |
| VGA |
D-SUB 15Pin Connector (Female) |
| Audio |
3.5" Jack |
| Power Input |
Standard IEC Inlet |
| Touch-USB ( option ) |
USB A Type connector |
| Touch-RS232 ( option ) |
D-SUB 9P connector ( Female ) |
|
| |
| POWER SPECIFICATIONS |
| AC Power Input |
Standard IEC Type Power Cord with Internal Power adapter, 100-240V AC Input |
| Wide Range DC Power Input ( option ) |
Screw Type Terminal Block with internal wide Range DC 9-36V power module |
|
| |
| USER CONTROL INTERFACE |
| Power ON / OFF via Front Button |
| Power Mode Status LED indicator |
| OSD ( On Screen Display ) Buttons |
|
| |
| MECHANICAL AND ENVIRONMENT |
| Height |
8U |
| IP Protect |
N/A |
| Mounting |
VESA Mount and Rack Mount |
| Construction |
Metal Housing |
| Operating Temperature |
0 - 50 deg. C |
| Operating Humidity |
5% - 95% ( non -condensing ) |
| Anti-Vibration |
5 - 500 Hz / 1 Grms PTP |
| Anti-Shock |
15G / Peak ( 11 ms ) |
| Physical Dimension (WxHxD) |
550 x 355 x 60 (mm) |
| Packing Dimension (WxHxD) |
680 x 480 x 210 (mm) |
| Net Weight / Gross Weight |
11 / 13.5 (KGs) |
| Certification and Approvals |
CE / FCC / RoHs |
|
