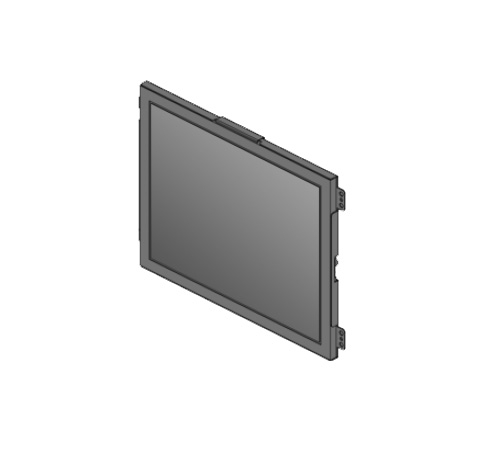

8" 1000nits High Brightness Open Frame Display Kit w/ flip function and supports Mirror (Model: FCOP840)
8" 800x600 Digital TFT LCD Aspect Ratio: 4:3 Ultra Compact NTSC/PAL, Video Auto Switch Input Signal CVBS / Analog RGB (VGA) All Functions can be controlled by UART 5 Key Buttons Controls, LED Backlight, Single Operation Voltage +12V, High Brightness 1000 nits, supports Mirror and flip function.
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
Features: |
|
| LCD | |
| Panel Size | 8" |
| Resolution (Pixels) | 800 x 600 |
| Color | 16.2M |
| Luminance | 1000nits |
| Contrast Ratio | 500 |
| View Angle | 70 / 70 / 70 / 50 |
| LED Life Time | 20K (Typ) |
| Power Requirement | |
| Power Input (DC Jack 2.1ψ) | +12 VDC |
| PowerConsumption@+12V | 7.32W |
| Input Signal | |
| CVBS | RCA JACK |
| VGA | D-Sub15 |
| Controls | |
| Key | 5 Buttons |
| Serial Remote Control | UART |
| Environment | |
| Temperature Range | |
| Operating | -20 ~ +70°C |
| Storage | -20 ~ +70°C |
| High Temperature &High Humidity(Non-condensing) | |
| Operating | +40°C/ 90% |
