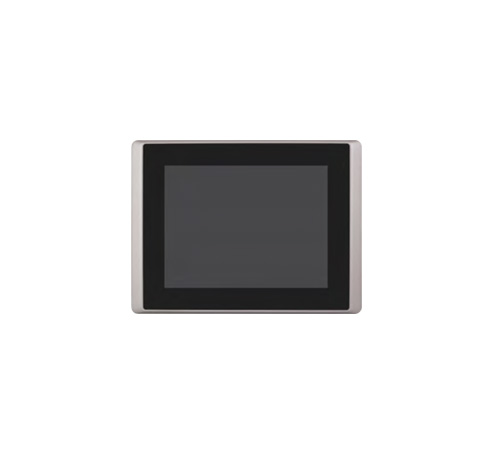

8" Fanless HMI Barebone PC UL Certificated w/ Intel Pentium N4200, PCAP Touch, 9~36VDC (Model: APCW08N4-UL-P-V1)

8" SVGA fanless HMI barebone with Intel Pentium N4200 (1.1 GHz) CPU, 4GB DDR3L RAM, Projected Capacitive touch, 9~36VDC input with adapter, Aluminum chassis. UL certificated

8" SVGA fanless HMI barebone with Intel Pentium N4200 (1.1 GHz) CPU, 4GB DDR3L RAM, Projected Capacitive touch, 9~36VDC input with adapter, Aluminum chassis. UL certificated

APCW08N4-UL-P-V1
  • Overview
  • Specifications
  • Download

Features:

  • 8" Industrial Compact Size Panel PC
  • Intel Apollo Lake N4200/ N3350 (option)
  • On Board 4GB/ 8GB DDR3L 1600MHz
  • Flat front panel touch screen
  • IP66 compliant front panel
  • Optional projected capacitive touch screen support 7H anti-scratch surface
  • DC 9~36V wide-ranging power input
  • High Brightness 1,000 nits for option
  • Storage MO-297 SATA (MLC): 64G/MLC/SATA3/mSATA/MO-300A/TRANSCEND/TS64GMSA372M
  • O/S: WIN10 IoT Ent LTSB 2016 MultiLang OEI ENTRY EPKEA (ESD) (6EU-00036)
SYSTEM
CPU Onboard Intel Apollo Lake N4200 (4 Core, 1.1GHz) / N3350 (2 Core, 1.1GHz) (option)
System Chipset SoC
Memory Onboard 4GB/ 8GB (option) DDR3L 1600MHz
External IO Port
USB 2 x USB 3.0 type A
Serial / Parallel 1 x DB-9 RS-232/422/485, COM1 (Default RS-232)
1 x RS-232 DB-9, COM2
LAN 2 x GbE LAN RJ-45
Audio 1 x Audio Line Out
Power 1 x 3-pin DC power input terminal
1 x 2-pin connector for power on/of
Option   VESA Stand
4G LTE/Wi-Fi/BT
STORAGE SPACE
HDD 1 x MO-297 SATA SSD bay (Easy Accessible)
Expansion
Expansion Slot 1 x Internal Mini-PCIe slot full size
1 x SIM card holder / Micro SD card reader
DISPLAY
Display Type 8" TFT-LCD
Max. Resolution 800 x 600
Max. Color 16.2M
Luminance (cd/m2) 450
View Angle 140(H) / 130(V)
Contrast 500:1
Backlight Lifetime 40,000 hrs
TOUCHSCREEN
Type Resistive Touch
Projected Capacitive Touch
Interface USB
Light Transmission(%) Resistive Touch: over 80%
Projected Capacitive Touch: over 90%
POWER
Power Input DC 9~36V
Power Consumption 28W

Construction Aluminum die-casting chassis
Mounting Panel Mount, VESA 75 x 75
IP Rating IP66 Compliant Front Bezel
Dimensions 231.1 x 176.1 x 50 mm
Net Weight 1.9 kg
ENVIRONMENTAL
Operating Temperature 0~50°C/ -20~60°C (option)
Storage Temperature -30~70°C
Humidity 10 to 95% @ 40°C, non- condensing
Certificate CE/FCCCIassA/UL
OPERATING SYSTEM SUPPORT
Windows 10 IoT
