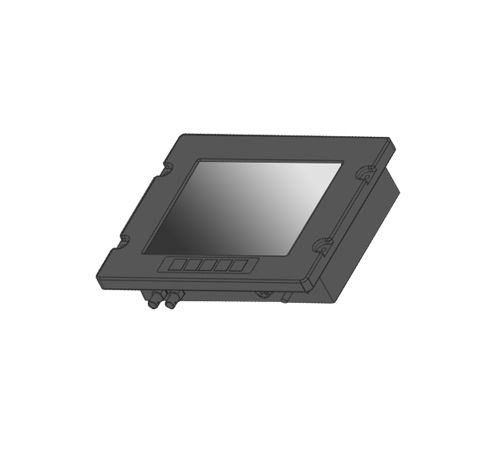

8.4" 1024x768, 700nits Military Grade Fully IP67 Display w/ SDI, MIL-STD-1275D / MIL-STD-810G, Includes NVIS (Model: Nmil-0840-SDI-NV)

8.4" Military Grade Fully IP67 Display, 1024 x 768, 700 cd/m2, 1x SDI-IN, 1x SDI Loop-Out, 1X DC 9~36V Wide Input, Design to meet MIL-STD-1275D / MIL-STD-810G, Includes NVIS (Night Vision Imaging System) function

8.4" Military Grade Fully IP67 Display, 1024 x 768, 700 cd/m2, 1x SDI-IN, 1x SDI Loop-Out, 1X DC 9~36V Wide Input, Design to meet MIL-STD-1275D / MIL-STD-810G, Includes NVIS (Night Vision Imaging System) function

Inquiry/Quote Request
Nmil-0840-SDI-NV
  • Overview
  • Specifications
  • Download
The 8-inch Military-Grade Fully IP67 NVIS NMIL-0840 SDI Night Vision Monitor delivers superior visibility under the harshest conditions. Designed according to military standards, this rugged display is fully IP67 certified for protection against dust and water ingress. Featuring NVIS-compliant illumination (NMIL-0840) and SDI input for high-quality digital video, it's ideal for defense, aviation, maritime, surveillance, and other mission-critical applications. Whether you’re operating at night or in challenging environments, this monitor ensures reliable performance, robust build, and clear visuals when you need them most.


Features:
  • 8.4" Rugged LCD, 1024x768 Resolution, 4:3 Aspect Ratio
  • 700 cd/m² brightness (day mode), 30-250 cd/m² night mode
  • IP67 all-around, military-grade aluminum with anti-corrosion treatment
  • Strengthened 3mm protective glass with optional touch
  • Inputs: 1x SDI-In, 1x SDI Loop-Out, DC Power (9-36V)
  • MIL-STD-1275D power protection, 10W low power consumption
  • MIL-STD-810G tested for shock, vibration, altitude, humidity, water drip
  • Operating temp (0-55°C), CE/FCC Certified
  • Power: DC 9-36V military grade power + (Mating Power Connector)
  • VESA Holes: All VESA-75 Holes are IP-67 water-proved
  • Includes NVIS (Night Vision Imaging System) function
Mechanical Material of Enclosure Military grade 64430 / 6061 aluminum alloy with anti-corrosion treatment
Anti-Corrosion Treatment Yes
IP Rating IP67 All sides
Color Semi-gloss Black
Mount Front Mount Front Mount
Panel Mount Panel Mount
VESA Mount 75-VESA Mount
Other Optional at your request (VESA-75 mounting kit)
EMI Mesh EMI Mesh Yes
LCD LCD Grade Military grade
LCD Size 8.4"
Resolution 1024 x 768
Aspect Ratio 4 : 3
Brightness Day mode is 700 cd/m2 for outdoor application
Night mode is from 30 up to 250 cd/m2
Contrast Ratio 1000 : 1
Display Color 16.7M
View Angle 85 / 85 / 85 / 85
Glass Protective Glass Yes, built in protective glass
Glass Type Strengthen 3.0mm thick glass
Touch Optional at your request
Signal Input SDI 1x SDI-In, 1x SDI Loop-Out
DC Power 1 x DC with military circular connector
Heater Module Heater Pad Optional
Thermo Sensor Optional
Power Supply Power Input DC 9 ~ 36V
Polarity Reverse Protection Yes, fully protected
MIL-STD-1275D Yes, MIL-STD-1275D compliant
Power Consumption 10 Watts
Dimension W x H x D 250 (W) x 200 (H) x 63 (D) mm
Weight To be checked
Dimension Operating Temperature 0 ~ +55°C (Optional -30 ~ +65 degree C)
Storage Temperature -45 ~ +85°C`
Environmental Shock MIL-STD-810G compliant
Vibration MIL-STD-810G compliant
Humidity 0~95% Relative Humidity at +40 deg. C, non-condensing
Water Drip MIL-STD-810G compliant
Mould Growth MIL-STD-810G compliant
Altitude 40,000 feet
EMC / EMI CE Approval
FCC Approval
MIL-STD-461E Optional
Included Night Vision Imaging System
