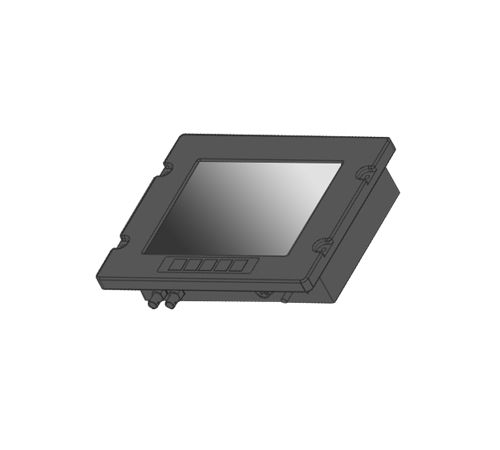

8.4" 1024x768, 700nits Military Grade Fully IP67 Display w/ SDI, MIL-STD-1275D / MIL-STD-810G (Model: Nmil-0840-SDI)

8.4" Military Grade Fully IP67 Display, 1024 x 768, 700nits 1x SDI-IN, 1x SDI Loop-Out, 1x DC 9~36V Wide Input, Design to meet MIL-STD-1275D / MIL-STD-810G

8.4" Military Grade Fully IP67 Display, 1024 x 768, 700nits 1x SDI-IN, 1x SDI Loop-Out, 1x DC 9~36V Wide Input, Design to meet MIL-STD-1275D / MIL-STD-810G

Inquiry/Quote Request
Nmil-0840-SDI
  • Overview
  • Specifications
  • Download
Presenting the 8-inch Military-Grade Fully IP67 NMIL-0840 SDI Monitor - a rugged display built for extreme conditions. Engineered to meet MIL standards, this unit delivers unmatched durability with full IP67 sealing for water and dust resistance. Equipped with NMIL-0840 NVIS compatibility and SDI inputs, it's optimized for night vision operations in defense, aviation, maritime, and tactical surveillance applications. When reliability, clarity, and mission readiness matter most, this monitor answers the call.


Features:
  • 8.4" Rugged LCD, 1024x768 Resolution, 4:3 Aspect Ratio
  • 700 cd/m˛ brightness (day mode), 30-250 cd/m˛ night mode
  • IP67 all-around, military-grade aluminum with anti-corrosion treatment
  • Strengthened 3mm protective glass with optional touch
  • Inputs: 1x SDI-In, 1x SDI Loop-Out, DC Power (9-36V)
  • MIL-STD-1275D power protection, 10W low power consumption
  • MIL-STD-810G tested for shock, vibration, altitude, humidity, water drip
  • Operating temp (0-55°C), CE/FCC Certified
Mechanical Material of Enclosure Military grade 64430 / 6061 aluminum alloy with anti-corrosion treatment
Anti-Corrosion Treatment Yes
IP Rating IP67 All sides
Color Semi-gloss Black
Mount Front Mount Front Mount
Panel Mount Panel Mount
VESA Mount Optional at your request
Other Optional at your request
EMI Mesh EMI Mesh Yes
LCD LCD Grade Military grade
LCD Size 8.4"
Resolution 1024 x 768
Aspect Ratio 4 : 3
Brightness Day mode is 700 cd/m2 for outdoor application
Night mode is from 30 up to 250 cd/m2
Contrast Ratio 1000 : 1
Display Color 16.7M
View Angle 85 / 85 / 85 / 85
Glass Protective Glass Yes, built in protective glass
Glass Type Strengthen 3.0mm thick glass
Touch Optional at your request
Signal Input SDI In 1 x SDI Video In
SDI Out 1 x SDI Video Loop-Out
DC Power 1 x DC with military circular connector
Heater Module Heater Pad Optional
Thermo Sensor Optional
Power Supply Power Input DC 9 ~ 36V
Polarity Reverse Protection Yes, fully protected
MIL-STD-1275D Yes, MIL-STD-1275D compliant
Power Consumption 10 Watts
Dimension W x H x D 250 (W) x 200 (H) x 63 (D) mm
Weight To be checked
Dimension Operating Temperature 0 ~ +55°C
Storage Temperature -45 ~ +85°C
Environmental Shock MIL-STD-810G compliant
Vibration MIL-STD-810G compliant
Humidity 0~95% Relative Humidity at +40 deg. C, non-condensing
Water Drip MIL-STD-810G compliant
Mould Growth MIL-STD-810G compliant
Altitude 40,000 feet
EMC / EMI CE Approval
FCC Approval
MIL-STD-461E Optional
