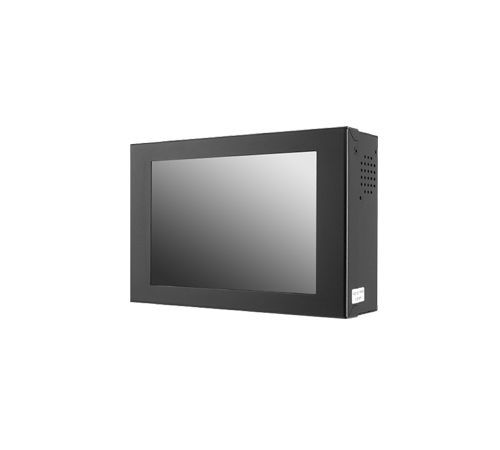

8.4" Industrial Chassis LCD Monitor 350nits, w/ VGA+HDMI, Side OSD, 5 Wire Resistive Touch (USB Controller) (Model: ECH840-TR-H)
Industrial Chassis/Wall Mount Metal Housing , 8.4" LCD monitor, 800 x 600, 350 nits VGA + HDMI Input,Side OSD with 5 Wire Resistive Touch Screen and USB Controller
ECH840-TR-H
- Overview
- Specifications
- Download
| Cell Type |
TFT LCD |
| Glass Surface |
Black Anti-Glare, low reflection coating |
| Aspect Ratio |
4:3 |
| Size |
8.4" viewable diagonal area |
| Active Area |
171.8(H) x 129.2(V) mm |
| Pixel Pitch |
0.213(H) x 0.213(V) mm |
| Native Resolution |
800(H) x 600(V) |
| Colors |
262K |
| Brightness |
350 |
| Contrast |
600 : 1 |
| Response Time |
≤ 30 ms |
| Viewing Angle (typical) |
H. 160°(- 80°~ + 80°) , V. 140°(- 70°~ + 70°) |
| Light Source |
LED backlight, Long life, 35,000 hrs (typ) |
|
| |
| CERTIFICATION |
| FCC , CE |
| INPUT TERMINALS |
| VGA + HDMI |
| CONVENIENT FEATURES |
| Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B) , OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing) |
| POWER |
| 12VDC-IN with external power adapter |
| POWER CONSUMPTION |
| Operation / Power Saving |
8.68 watt , < 2 watt (Support DPMS) |
| OPERATING CONDITION |
| Temperature / Humidity |
0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation) |
| STORAGE CONDITION |
| Temperature / Humidity |
-20°C ~ 60°C (-4°F ~ 140°F) ,10%~ 90% (no condensation) |
| DIMENSIONS |
| Physical |
- |
| Carton |
W x H x D = TBD |
| WEIGHT |
| N.W. / G.W. |
2.5 Kgs/3.5 Kgs |
| CONTAINER LOADED |
| 20ft / 40ft / 40ft HQ |
TBD (Sets , By pallet) |
|
| |
| TOUCH |
VIDEO INPUT |
ENHANCED PANEL |
POWER |
OTHERS |
| Resistive Touch |
AV-IN |
High Brightness Panel |
24V DC-IN |
Motion Sensor |
| Projected Capacitive Touch |
AV Looping |
Sunlight Readable |
9~36V DC-IN |
Light Sensor |
| Infrared Touch |
HDMI / DP |
Wide Viewing Angle |
48V 72V DC-IN |
VR-knob Dimming |
| Protected Glass |
HD-SDI |
Wide Temperature |
90V 125V DC-IN |
RS232 Remote On/Off |
| Optical Bonding |
|
UV Film |
110V 220V DC-IN |
Military Connector: MIL 38999 |
| |
|
Anti-Vandal |
|
Metal Connector: M12 / M16 |
| |
|
|
|
Stainless 316 Enclosure |
|
