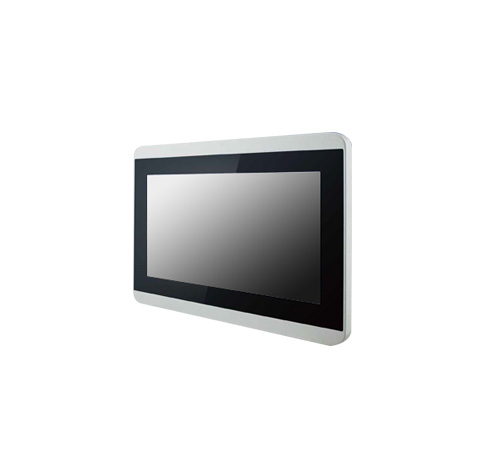

7" Wide Rugged Full IP65 LCD 1000nits, 1xVGA Input, 12V Input w/ PCAP Touch & M12 Connectors (Model: WRDW0700MHB-TFP)
Front IP65 Wide 7" Rugged Full IP65 Dust/Water Resistant Protection, 1024x600, 1000nits Projected Capacitive Multi Touch Screen Operating Temperature -15~55C Shock 40g for 11ms Vibration 1.48/1.90/2.24 g rms for XYZ/ 5-500Hz, M12 connectors. 1 x VGA, 12V input with 100~240V AC to DC Adapter Power Cord, 1 x USB for Touch Screen
Main Feature
- 7" 1024 x 600 Resolution
- Projected Capacitive MultiTouch (PCAP)
- Full IP65 Water and Dust Proof
- M12 Waterproof Connectors
- Fully rugged elegant, edgetoedge design
X
Inquiry/Quote Request
- Specifications
- Download
| Display | |
| Touch / Glass | Projected Capacitive Multi Touch Screen Protection Glass (Optional) |
| Resolution | 1024x600 |
| Size | 7 inches |
| Contrast Ratio | 700:1 |
| Panel Brightness | 1000 nits |
| Display Color | 16.2M Colors |
| View Angles | 75,75,75,70 |
| Active Area | 153.6x90 mm |
| Environment | |
| Operating Humidity | 10% to 95% RH |
| Operating Temperature | -15°C to 55°C |
| Storage Temperature | -30°C to 60°C |
| Shock | 40g for 11ms |
| Vibration | 1.48/1.90/2.24 g rms for XYZ/ 5-500Hz |
| IP rating | Full IP65 |
| Certification | |
| Certification | Compliant with MILSTD810F/G for vibration / shock, CE, FCC |
| IO Ports | |
| USB Port | 1 x USB for Touch Screen |
| Video | 1 x VGA |
| Audio | 1 x Speaker |
| Mechanical | |
| Dimension | 189.4 x 145.4 x 39.8 mm |
| Enclosure | Metal Housing with Aluminum Bezel |
| Mounting | VESA Mount/ Panel Mount |
| Cooling System | Fanless Design |
| Accessory | |
| Accessory | Quick Start Guide(Hardcopy) AC Adapter(For 7'' Display only) M12 Power Cable(Not Supplied with 7'' Display) VGA Cable USB for Touch Cable I/O Protective Cap x 3 |
| Power | |
| Power Rating | 12V DC (M12 type) |
| Control | |
| Button | 5 Keys: , + , Power , Esc , Enter |
