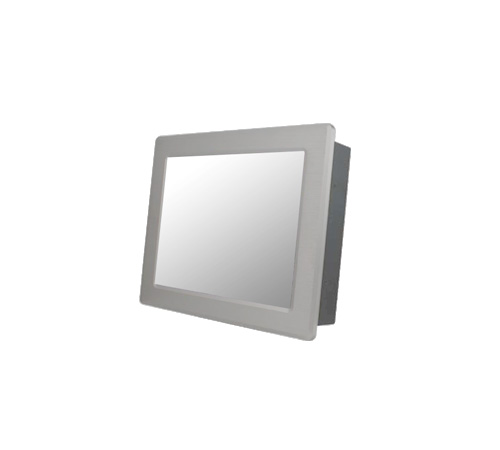

7" Wide Aluminum 6mm Panel Mount 1000nits LED, VGA, Rear OSD w/ 4Wire Resistive Touch (Model: YPMW0700PHBWTTR)

7" Wide / Aluminum 6mm / Panel mount / -30 to 65C / 800x480 / 1000nits LED / VGA input / Rear OSD / 110/220V AC external adapter/ 4 wire resistive touch with USB controller

7" Wide / Aluminum 6mm / Panel mount / -30 to 65C / 800x480 / 1000nits LED / VGA input / Rear OSD / 110/220V AC external adapter/ 4 wire resistive touch with USB controller

Overview
Specifications
Download

Features:

High contrast color TFT-LCD Monitor support resolution up to 800*480.
Power management system conforms to VESA DPMS and EPA Energy Star standards.
Full consideration for touch screen installation and application.
Universal Power adapter.
Support DDC1 & DDC2B for Plug & Play compatibility.
Advanced OSD control for picture quality adjustment.
Heavy duty monitor with steel frame.
Custom design by request.

Panel Type	7-inch TFT LCD
Screen Diagonal	7-inch
Active Display Area (mm)	152.40 (H) x 91.44 (V)
Pixel Pitch (mm)	0.1905 x 0.1905
Number of Pixels	800 * 480
Contrast Ratio	750:1
Color Arrangement	R.G.B. Vertical Stripe
Brightness (cd/m²)	1000 cd/m²
Viewing Angle(Typ.)	80/80/80/80 (R/L/U/D)
Signal Connector	VGA Input
Power Source	110/220V AC External Adapter
Power Management	VESA DPMS Compliant
Temperature	-30 ~ +65°C
Plug & Play	VESA DDC 1/2B
