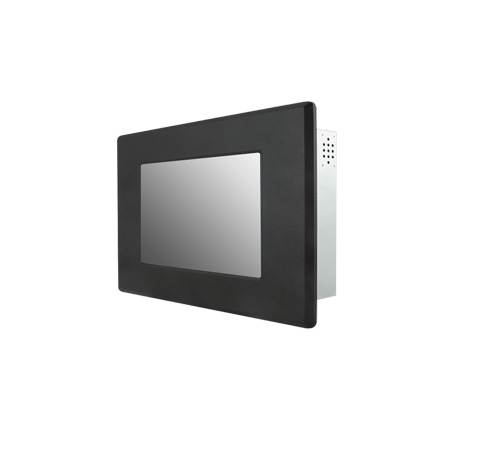

7" TFT SVGA Panel PC Integrated VGA w/ Intel Celeron N2930, 4GB, 128GB, Window 10 IoT & PoE (Model: WPM700-PoE)
7" TFT SVGA Panel PC Integrated VGA, Dual-channel 24-bit LVDS, HDMI with Intel Celeron N2930, 4GB, 128GB, Window 10 IoT & PoE
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
Features: |
|
| Display | |||
| Resolution | 1024x600 | Size | 7 inches |
| Contrast Ratio | 1000:1 | Panel Brightness | 320 nits |
| View Angles | 75,75,75,70 | Active Area | 153.6x90 mm |
| Touch / Glass | Resistive Touch Screen (Optional) Protection Glass Without Touch Function (Optional) |
||
| System Specification | |||
| Processor | Intel Celeron N2930 1.83GHz (up to 2.16GHz) | Memory | 1 x SODIMM, DDR3L 1600 MHz, 4GB 8GB (Optional) |
| Storage | 1 x mSATA SSD 128GB. mSATA SSD up to 512GB. (Optional) |
Operating System | Windows 10 IoT Enterprise (64 bit) Linux Ubuntu 20.04 (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller | WLAN | Support (Optional) |
| BT | Support (Optional) | ||
| Mechanical | |||
| Dimension | 218 x 164.6 x 55.3 mm | Mounting | Panel Mount VESA Mount |
| Enclosure | Metal Housing | Cooling System | Fanless design |
| Cut out | 192 x 133mm | ||
| Environment | |||
| Operating Humidity | 10% to 90% (noncondensing) | Operating Temperature | 0~50°C |
| Storage Temperature | -20~60°C | Shock | MIL-STD-810G Method 516.6 |
| Certification | |||
| Certification | CE, FCC | ||
| IO Ports | |||
| Power Input | 1 x 12V DC, 2.5φ DC jack | USB Port | 1 x USB3.2 Gen1x1 (TypeA) 1 x USB2.0 (TypeA) |
| Serial Port | 1 x RS232/422/485 (Default RS232) 1 x RS232 |
Video | 1 x HDMI 1.4 (Optional) |
| Audio | 2 x Speaker | Expansion Port | 1 x mPCIe slot(for half size Wifi module) |
| LAN | 2 x Giga LAN RJ45 Connector | Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage |
| Brightness Knob | 1 x Brightness Adjustment Knob | mini PCIe | 1 x Mini PCIE(For WLAN) |
| Control | |||
| Button | 1 x Power Button 1 x Reset Button |
||
| Accessories | |||
| Accessories | 100~240V AC to DC Adapter Power Cord VESA screws Mounting clips |
||
| Power | |||
| Power Rating | 12V DC | Adapter | 12V 50W |
