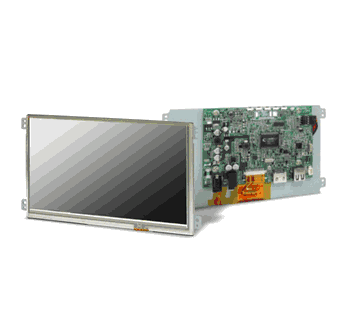

7" Wide Digital TFT Openframe LCD, HDMI 1.3a Input, 5 Key Buttons Control, 9 Language OSD Menu w/ Touch (Model: FCOPW0700-TR)
7" Wide Digital TFT Openframe LCD Aspect Ratio: 16:9, Input Signal HDMI 1.3a, 5 Key Buttons Control, 9 Language OSD Menu w/ Touch Screen 4W Resistive
Main Feature
- 7" (1024x600) Digital TFT LCD\
- Aspect Ratio: 16:9
- Input Signal HDMI 1.3a
- Maximum Support Resolution 1920x1080
- Headphone Driver, 46mW@32Ω
- Touch Screen 4W Resistive
- 5 Key Buttons Control
- UART / RS232 Serial Remote Control (Option)
- 9 Language OSD Menu
- LED Backlight
- Single Operation Voltage +5V
X
Inquiry/Quote Request
- Specifications
- Download
| LCD Panel | |
| Panel Size | 7" |
| Resolution (Pixels) | 1024x600 |
| Color | 262K |
| Luminance without RTP | 250 cd/㎡ |
| Luminance (RTP) | 200cd/㎡ |
| Contrast Ratio | 700 |
| View Angle | 75 / 75 / 70 / 75 |
| LED Life Time | 15K (Min) |
| Power Requirement | |
| Power Input (DC Jack 2.1ψ) | +5VDC |
| Power Consumption | 3.6 Watts |
| Touch Screen | |
| Resistive Type | USB / RS232(Option) Interface |
| Resistive Type Support OS | Windows / Linux / DOS / Mac / QNX |
| Input Signal | |
| HDMI | 1.3a |
| Audio | |
| Headphone Driver | 46mW@32Ω |
| Phone Jackψ3.5 | |
| Controls | |
| Key | 5 Buttons |
| Serial Remote Control | UART / RS232 (Option) |
| Environment | |
| Without RTP | |
| Temperature Range | |
| Operating | -10~+40 (Ts) °C |
| Storage | -20~+60°C |
| High Temperature & High Humidity (Non-condensing) | |
| Operating | +40°C/ 90% |
| 4W RTP | |
| Temperature Range | |
| Operating | -10~+40 (Ts) °C |
| Storage | -20~+60°C |
| High Temperature & High Humidity (Non-condensing) | |
| Operating | +40°C/ 90% |
