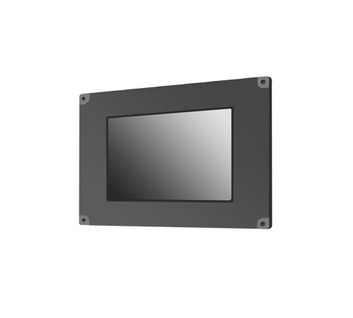

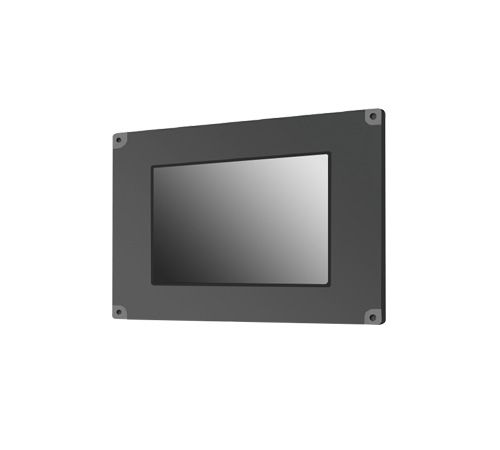

7" Wide Flush Mount LCD Monitor w/ VGA, DVI, 9~36V DC, EN50155 Standard and EMC, Wide Temp(-30~80C) (Model: EFMW0700-D)
Flush Mount, Wide 7" LCD Monitor, 800x480, LED-400nits, WV(160°/160°), Wide Temp(-30~80C), VGA, DVI inputs. Power 9~36V DC input Compliance to the EN50155 standard and EMC
EFMW0700-D
- Overview
- Specifications
- Download
| Cell Type |
TFT LCD |
| Glass Surface |
Black Anti-Glare, low reflection coating |
| Aspect Ratio |
Wide |
| Size |
7" viewable diagonal area |
| Active Area |
152.40(H) x 91.44(V) mm |
| Pixel Pitch |
0.1905(H) x 0.1905(V) mm |
| Native Resolution |
800(H) x 480(V) |
| Colors |
262 K |
| Brightness |
400 |
| Contrast |
700 : 1 |
| Response Time |
≤ 30 ms |
| Viewing Angle (typical) |
H. 160°(- 80°~ + 80°) , V. 160°(- 80°~ + 80°) |
| Light Source |
LED backlight, Long life, 35,000 hrs (typ) |
|
| |
| CERTIFICATION |
| FCC , CE |
| INPUT TERMINALS |
| 1 x VGA , 1 x DVI , 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug |
| CONVENIENT FEATURES |
| Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B) , OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing) |
| POWER |
| 9~36V DC |
| POWER CONSUMPTION |
| Operation / Power Saving |
9.625 watt , < 2 watt (Support DPMS) |
| OPERATING CONDITION |
| Temperature / Humidity |
- 30°C ~ 80°C (-22°F ~ 176°F), 10% ~ 90% (no condensation) |
| STORAGE CONDITION |
| Temperature / Humidity |
- 30°C ~ 80°C (-22°F ~ 176°F), 10% ~ 90% (no condensation) |
| DIMENSIONS |
| Physical |
Please refer to Drawing |
| Carton |
W x H x D = TBD |
| WEIGHT |
| N.W. / G.W. |
3 Kgs/4 Kgs |
| CONTAINER LOADED |
| 20ft / 40ft / 40ft HQ |
TBD (Sets , By pallet) |
|
| |
| TOUCH |
VIDEO INPUT |
ENHANCED PANEL |
POWER |
OTHERS |
| Resistive Touch |
AV-IN |
High Brightness Panel |
24V DC-IN |
Motion Sensor |
| Projected Capacitive Touch |
AV Looping |
Sunlight Readable |
9~36V DC-IN |
Light Sensor |
| Infrared Touch |
HDMI / DP |
Wide Viewing Angle |
48V 72V DC-IN |
VR-knob Dimming |
| Protected Glass |
HD-SDI |
Wide Temperature |
90V 125V DC-IN |
RS232 Remote On/Off |
| Optical Bonding |
|
UV Film |
110V 220V DC-IN |
Military Connector: MIL 38999 |
| |
|
Anti-Vandal |
|
Metal Connector: M12 / M16 |
| |
|
|
|
Stainless 316 Enclosure |
|
