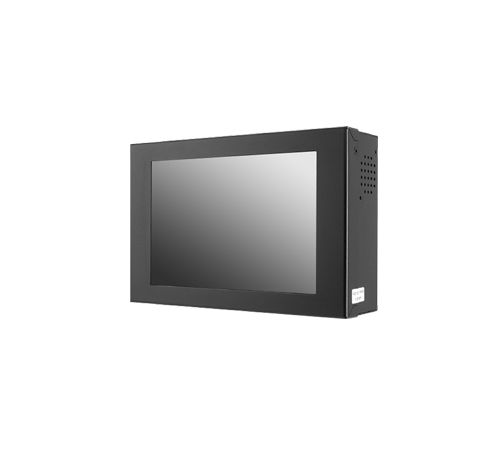

7" IP65 Front and IP54 Rear Vehicle Chassis LCD Monitor w/ VGA+HDMI, PCAP Touch, EN50155 (Model: ERDW700-PCAP-WT)

IP65 Front and IP54 Rear Chassis, Wide 7" LCD monitor, 800x480 LED-800nits, VGA, HDMI, PCAP Touch USB (Touch) Wide View (160°/160°) Wide Temp (-30~80C), Compliance EN50155 (for EMC, Vibration, and Temperature), Built-In Auto Light Sensor Power Lock Cable Type Connector: 12VDC-IN w/ Adapter

IP65 Front and IP54 Rear Chassis, Wide 7" LCD monitor, 800x480 LED-800nits, VGA, HDMI, PCAP Touch USB (Touch) Wide View (160°/160°) Wide Temp (-30~80C), Compliance EN50155 (for EMC, Vibration, and Temperature), Built-In Auto Light Sensor Power Lock Cable Type Connector: 12VDC-IN w/ Adapter

Inquiry/Quote Request
7-inch-vehicle-chassis-lcd-monitor-pcap-touch-en50155-erdw700-pcap-wt
  • Overview
  • Specifications
  • Download
The ERDW700-PCAP-WT is a rugged 7-inch vehicle chassis LCD monitor designed specifically for railway and in-vehicle applications. Built to comply with EN50155 railway standards, this monitor delivers exceptional durability, anti-vibration performance, and operational reliability. With a PCAP (projected capacitive) touchscreen, wide viewing angles, and robust metal construction, the ERDW700 is ideal for harsh environments where dependable, touch-enabled visual interface is required.


Features:
  • Modular mechanical design allows for flexible product configurations and simplifies maintenance.
  • Integrated touch screen supports interactive applications.
  • Auto-brightness sensor available, enabling optimal visibility in both day and night environments.
  • Standard VGA input, with optional AV, S-Video, and AV-looping connectivity.
  • Fully customized designs and solutions available for OEM customers.
  • Built-In Auto Light Sensor
  • Power Lock able type connector:12VDC-IN w/ Adapter
Cell Type TFT LCD
Glass Surface Black Anti-Glare, low reflection coating
Aspect Ratio Wide
Size 7" viewable diagonal area
Active Area 152.40(H) x 91.44(V) mm
Pixel Pitch 0.1905(H) x 0.1905(V) mm
Native Resolution 800(H) x 480(V)
Colors 262 K
Brightness 800
Contrast 700 : 1
Response Time ≤ 30 ms
Viewing Angle (typical) H. 160°(- 80°~ + 80°) , V. 160°(- 80°~ + 80°)
Light Source LED backlight, Long life, 35,000 hrs (typ)

CERTIFICATION
FCC , CE
INPUT TERMINALS
1 x VGA , 1 x HDMI , 1 x USB , 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
CONVENIENT FEATURES
Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B) , OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
POWER
12VDC-IN with external power adapter
POWER CONSUMPTION
Operation / Power Saving 9.625 watt , < 2 watt (Support DPMS)
OPERATING CONDITION
Temperature / Humidity - 30°C ~ 80°C (-22°F ~ 176°F), 10% ~ 90% (no condensation)
STORAGE CONDITION
Temperature / Humidity - 30°C ~ 80°C (-22°F ~ 176°F), 10% ~ 90% (no condensation)
DIMENSIONS
Physical Please refer to Drawing
Carton W x H x D = TBD
WEIGHT
N.W. / G.W. 3 Kgs/4 Kgs
CONTAINER LOADED
20ft / 40ft / 40ft HQ TBD (Sets , By pallet)
