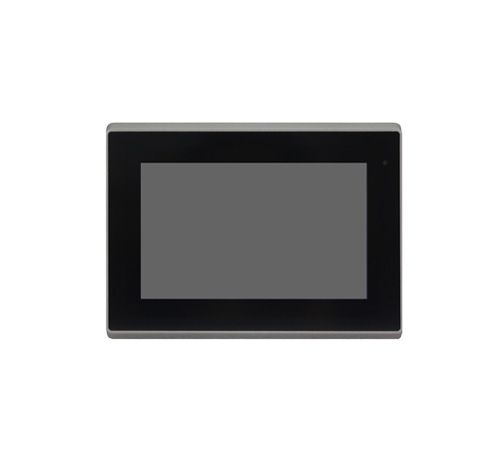

7" Front Panel IP66 Aluminum Die-Casting Display PCAP Touch w/ VGA, DVI, HDMI, DP input, Din Rial (Model: ACHW0700-PCAP)

Front Panel IP66 Aluminum Die-Casting Display 7" FPD Industrial display, 800x480, Projected Capacitive touch screen, VGA, DVI, HDMI, and DP input, 5 keys Rear OSD, DC 9~36V power input with adapter, Aluminum Die-casting Chassis HB/OB/60W ADP/USB CABLE/HDMI CABLE/Din Rial

Front Panel IP66 Aluminum Die-Casting Display 7" FPD Industrial display, 800x480, Projected Capacitive touch screen, VGA, DVI, HDMI, and DP input, 5 keys Rear OSD, DC 9~36V power input with adapter, Aluminum Die-casting Chassis HB/OB/60W ADP/USB CABLE/HDMI CABLE/Din Rial

Inquiry/Quote Request
ACHW0700-PCAP
  • Overview
  • Specifications
  • Download
The 7-Inch Front Panel IP66 Aluminum Panel PC (ACHW0700-PCAP) from iTech is a compact yet rugged industrial computing solution designed for demanding environments. Built with a durable aluminum front bezel and full IP66 protection, this panel PC resists dust, water, and harsh operating conditions. Its projected capacitive touch screen delivers smooth and responsive operation, making it ideal for industrial automation, kiosk systems, control panels, and outdoor applications where reliability and durability are essential.


Features:
  • 7" FPD industrial display
  • 800 x 480 resolution
  • Projected capacitive (P-CAP) touch screen
  • Multiple video inputs: VGA, DVI, HDMI, and DisplayPort
  • 5-key rear OSD control panel
  • Wide-range DC 9-36V power input with adapter
  • Durable aluminum die-casting chassis
  • Operating Temperature Range of -30°C to 70°C
I/O
VGA 1x VGA
DVI 1 x DVI-D (share with HDMI)
DP 1 x DP
HDMI 1 x HDMI (share with DVI-D)
Audio 1 x Audio line-in phone jack
OSD Control Membrane OSD at rear side
Power 1 x 3-pin terminal block for DC 9~36V power input
Others 1 x USB type B for touch control
Optional I/O:
1 x Speaker
1 x RS-232 DB-9 for Touch Control
Display Standard High Brightness
Display Type 7" TFT-LCD 7" TFT-LCD
Max. Resolution 800x480 800x480
Max. Color 262K 262K
Luminance (cd/m2) 350 1000
View Angle 160(H)/160(V) 160(H)/160(V)
Contrast 1000:1 1000:1
Backlight Lifetime 30,000 hrs 30,000 hrs
Touch Screen
Type Projected Capacitive Touch
Interface USB
Light Transmission(%) 90%

Power
Power Input DC 9~36V
Power Consumption 4W (MAX)
Mechanical
Construction Aluminum Die-casting Chassis
Mounting Panel Mount , VESA mount 75x75
Dimensions (WxHxD) 202 x 149 x 40 mm
IP Rating IP66 Compliant Front Bezel
Net Weight 1.06 kg
Environmental
Operating Temperature -30~70˚C
Storage Temperature -30~70˚C
Humidity 10 to 95%@ 40˚C, non-condensing
Certificate CE/FCC Class A/UL
