6U Rackmount 15" LCD Monitor with Analog Resistive Touchscreen (Model: HRM615TR)

6U Rackmount 15" LCD Monitor with Analog Resistive Touchscreen

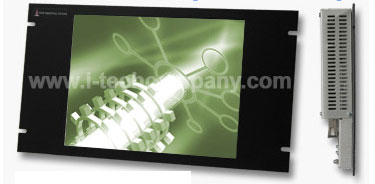

  • Front View
  • Side View
  • Back View
  • Cable Exit View

6U Rackmount 15" LCD Monitor with Analog Resistive Touchscreen

HRM615TR
  • Overview
  • Download

Superior Picture Quality

  • Bright 250 NIT display, 500:1 contrast ratio
  • High 1024 x 768 Resolution

Rugged Rack Mount Design

  • High temperature range, up to 50°C (122°F)
  • High shock and vibration specs
  • Tempered Glass or Touchscreen Window

High Reliability

  • Field MTBFs greater than 250,000 hours
  • 50,000 hour backlight brightness half-life
  • 3-year warranty!

Small Size

  • Small footprint (only 6U rack space)
  • Only 58.4 mm (2.3") deep

Industrial Certifications

  • UL 60950 3rd Edition / cUL, UL 508A, UL 50E, FCC Class A, CE

Description

The HRM615 Industrial LCD Monitor has been designed to provide the industrial user with superior picture quality and state-of-the-art features housed in an EIA 19" standard rackmount enclosure. With a low profile of only 6U and a high-resolution 15" display, the HRM615 offers the industrial user the optimal trade-off between space, screen size and cost.


Features

  • 15" active-matrix LCD display
  • 1024 x 768 resolution
  • Long-life backlights
  • High brightness, high contrast
  • Black powder coated steel faceplate
  • Tempered Safety Glass window option
  • Analog Resistive Touchscreen option
  • Only 58.4 mm (2.3") deep
  • EIA 19" rack mount capable


Specifications

Display

  • Thin-film Transistor (TFT) Active Matrix Liquid Crystal
  • Size - 15.0" diagonal
  • Image Size (W x H) - 304 mm x 228 mm (12.0" x 9.0")
  • Native Resolution - XGA (1024 x 768, 4:3 aspect ratio)
  • Plug and Play - DDC1/2B compatible
  • Minimum Resolution - VGA (640 x 350)
  • Pixel Pitch - 0.297 mm x 0.297 mm
  • Number of Colors - 262,144; 16.2 million with FRC or Dithering
  • Viewing Angle (Hori/Vert), typical - 140° / 120°
  • Brightness - (white) 250 nits (cd/m2) max
  • Contrast Ratio (typical) - 500:1
  • Backlight - Two CCFTs (Cold Cathode Fluorescent Tube); 50,000 hour brightness half-life; replaceable
  • Screen Protector (when not shipped with touchscreen) - Tempered glass to ANSI-Z97.1 SPEC; AR coated on both sides; 98% Transmission of light; 99% Reduction of glare; 53% UV blocking; 30% NIR Blocking


Video

  • Input Connectors
    • HD-15
    • Optional BNC input (using HD-15 to 5-wire BNC adapter); see "Input Signal Formats" for a list of compatible video signals
  • Input Signal Formats
    • RGB Analog video, 0.7/1.0 Vp-p, 75 Ohms; Compatible sync modes: Separate H/V sync
    • NTSC/PAL composite input available (call for details)
  • Horizontal Scan - 24-61 kHz
  • Vertical Scan - 56-75 Hz
  • Supported Video Standards - 1024 x 768 @ 60 (native), 66, 70, 75 Hz; 800 x 600 @ 56, 60, 72, 75 Hz; 720 x 400 @ 70 Hz; 640 x 480 @ 60, 72, 75 Hz; 640 x 400 @ 56, 70 Hz; 640 x 350 @ 70 Hz; see user manual for a full list of resolution and timing compatibility
  • Response Rate (typical) - 12 ms


Electrical

  • Power Input - 120/240 VAC, 1.2/0.6 A, 60/50 Hz (auto switch)
  • Power Consumption (typical) - 25 W
  • Power Consumption (standby mode) - DPMS, < 2 W


Enclosure

  • Type - Rack mount; Standard EIA 19" rack width; 6U height with 4 mounting holes
  • Enclosure Rating - NEMA/UL Type 1
  • Black Powder Coated Steel faceplate


Environmental

  • Temperature - 0° to 50°C (32° to 122°F)
  • Humidity - 20% to 90% non-condensing
  • Operating Shock - 15 g, 6 msec, half-sine
  • Operating Vibration (sine) - 1.0 g, swept sine 9-500 Hz
  • Transport Vibration (random) - 0.1g² / Hz, 10-200 Hz; 0.03g² / Hz, 200-2000 Hz
  • Altitude - Operating: up to 10,000 feet; Non-operating: up to 40,000 feet
  • Environmental Sulfur Gas Protection Option - includes glass-armored touchscreen, vapor-phase corrosion inhibitor, and extensive sealing; consult sales for details. More on Sulfur Gas Protection.


Functional

  • Panel Controls (rear access) - Minus/Auto Adjustment, Plus, Power, Menu/Left, Menu/Right
  • OSD (On Screen Display) Controls - Brightness, Contrast, Horizontal Position, Vertical Position, OSD Transparency, Phase, Clock, Color Temperature, Horizontal OSD Position, Vertical OSD Position, Graph/Text, Recall, Language, Auto Adjustment, Exit


Physical

  • Depth - 58.4 mm (2.3") behind panel
  • Bezel - Carbon Steel, black powder-coated
  • Front Bezel Outside Dimensions (W x H x D) - 482.6 mm x 265.43 mm x 3.175 mm (19.0" x 10.45" x 0.125")
  • Net Weight - 11 lbs.
  • Shipping Weight - 15 lbs.


Touchscreen Option

  • 5-wire resistive system
  • Emulates a mouse
  • RS-232 or USB interface to host computer (both connections are present on touchscreen monitors)


Compliances and Certifications

  • UL 60950 3rd Edition / cUL Recognized Component (File No. E212889)
  • UL 508A Listed (File No. E318630)
  • FCC Class A
  • CE
  • RoHS
  • WEEE (Registration No. WEE/DJ1859ZX for UK only)
  • IEC 60721-3
  • UL 50E (File No. E318630)
