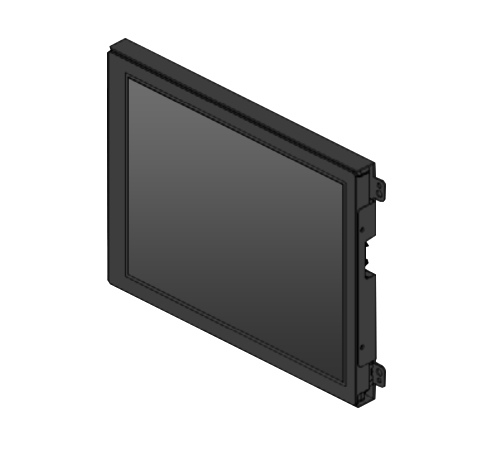

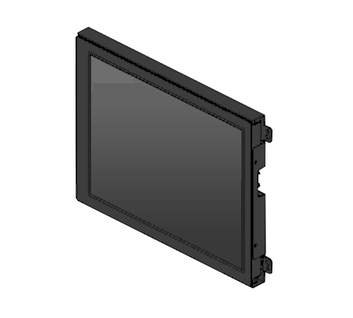

6.5" High Brightness 800nits Open Frame Digital TFT LCD LED Backlight (Model: FCOP0650HB)
6.5" High Brightness 800nits Open Frame Digital TFT LCD LED Backlight (Model: FCOP0650HB)
Main Feature
- 6.5" Digital TFT LCD
- Ultra Compact
- NTSC/PAL/SECAM Video Auto Switch
- Single Operation Voltage +12V
- CVBS / S-Video (Option) / Analog RGB (PC Mode) Signal Input
- All Functions can be controlled by UART
- Support Touch Screen Function (Option)
- Built-in EDID Function
X
Inquiry/Quote Request
- Specifications
- Download
- Contact Sales
Product discontinues FCOP0650HB version is EOL, new version is FCOP0650HB-V1
| LCD | |
| Panel Size | 6.5" |
| Resolution (Pixels) | 640 x 480 |
| Color | 262K |
| Luminance | 800 cd/㎡ |
| Contrast Ratio | 600 |
| View Angle | 80 / 80 / 70 / 70 |
| LED Life Time | 50K (Min) |
| Power Requirement | |
| Power Input (DC Jack 2.1ψ) | +12 VDC |
| Power Consumption@+12V | 5.8 Watts |
| Touch Screen | |
| Resistive Type | USB / RS232 Interface |
| Resistive Type Support OS | Windows / Linux / DOS / Mac / QNX |
| Input Signal | |
| Input Signal System | CVBS / Analog RGB (VGA) |
| Input Video System | NTSC / PAL |
| Key | 5 Buttons |
| Serial Remote Control | UART / RS232 (Option) |
| Environment | |
| Temperature Range | |
| Operating | -20 ~ 70°C |
| Storage | -20 ~ 70°C |
| High Temperature & High Humidity (Non-condensing) | |
| Operating | +40°C / 90% |
