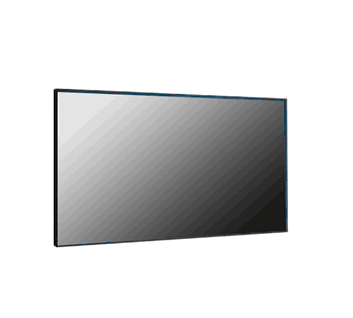

65" Close Frame LCD Monitor 1000nits, 1920x1080, VGA+DVI+HDMI, 100~240V AC-in (Model: GCHW6500HB-1K)

65" Close Frame Monitor w/ 1000nits, 1920x1080, I/O: VGA/DVI/HDMI, power:100~240V AC-in accessaries: US type AC power cable x1,VGA cable x1, 50cm light sensor cablex1

65" Close Frame Monitor w/ 1000nits, 1920x1080, I/O: VGA/DVI/HDMI, power:100~240V AC-in accessaries: US type AC power cable x1,VGA cable x1, 50cm light sensor cablex1

Main Feature

    • 65" LCD support Full-HD resolution
    • 1000 nits high brightness
    • IPS extra wide view angle, Hi-Tni TFT
    • Video signal IO: VGA / DVI / HDMI
    • High reliability for 24/7 operation
    • (Option) Built-in speaker / auto brightness control
Inquiry/Quote Request
GCHW6500HB-1K
  • Overview
  • Specifications
  • Download
  • Contact Sales
GCH Series High brightness monitors is designed for commercial and industrial applications at outdoors and indoors. Such as kiosks, digital signage, military, security, industrial equipment and instrumentation equipment. This product can provide high brightness / contrast to achieve better viewing effect and good reliability at wide environments conditions


Features Highlights:
  • 1. Metal Chassis/Housing for higher Impact protection. (Optional for Front AR Glass or Vandal Resistant glass)
  • 2. Built-in speak built-in speakers that allow the convenience Audio output.
  • 3. Side OSD buttons can prevent unnecessary setting changes.
  • 4. Above 24" LCD will include Front IR Sensor and Remote controller.
  • 5. Auto Video Signal ON / OFF Auto Always Power On

  • 1. Ultra low speed/Noise fan for extra cooling (24" LCD or above)
  • 2. VESA Mounting Hole Pattern
  • 3. Reliable built-in Power supply for 15" or above (Optional for 9-36V DC input)
  • 4. Standard VGA Input (Optional for DVI. HDMI, AV, BNC, AV looping and SDI)
  • 5. Optional for RS232 Remote Control Protocol: Command Code to set system



LCD Options
  LED Backlight

Introducing LED backlight options for monitors for energy efficiency and a brighter screen.

  TouchScreen

Our LCD has a wide selection option to choose which touchscreen.technology suits for you.

Four-Wire
Resistive
Five-Wire Resistive
Pen Touch
Capacitive
Surface Wave(Saw)
Infrared Touch (Ir)
PRODUCT SIZE 1.7" - 24" 10.4" - 24" 15" - 19" 12" - 24" 10.4" - 30" 10.4" - 42"
TOUCH LIFE 1 - 2 million
touches		 30 - 35million
touches		 100 million
touches		 100 million
touches		 50 million
touches		 Long-term reliability
SCRATCH RESISTANCE Hard Coated Hard Coated Hard Coated
(SiO²)		 Hard Coated
(SiO²)		 Glass Overlay
Moh's hardness rating of 7		 Glass Overlay
Moh's hardness rating of 7
CONTAMINANT RESISTANCE Resists moisture, dirt, vinegar, ammonia based food products and cleansers Resists moisture, dirt, vinegar, ammonia based food products and cleansers Resists moisture, dirt, vinegar, ammonia based food products and cleansers Resists moisture, dirt, vinegar, ammonia based food products and cleansers Resists moisture, dirt, vinegar, ammonia based food products and cleansers Resists moisture, dirt, vinegar, ammonia based food products and cleansers
INPUT METHOD Finger, Gloved Hand, Stylus Finger, Gloved Hand, Stylus Stylus Pen Finger Finger, Gloved Hand, Soft pliable stylus Finger, Gloved Hand, Stylus
CONTROLLER USB, RS232 USB, RS232 USB, RS232 USB, RS232 USB, RS232 USB, RS232



  VIDEO Input

For Video inputs options:
  • DVI
  • DVI+HDMI
  • SVideo+AV
  • SVideo+AV+DVI
  • AV+Looping
  • DVI+AV+Looping
  • HD-SDI


  Optical Bonding

  • Optical Bonding provides the best reduction of ambient light washout of any commercially available enhancement technology.
  • Optical Bonding has a lower cost than most other competing technologies.
  • Optical Bonding offers superior ruggedization, enhancing the display durability under vibration, shock and other environmental extremes.



  RS-232 Remote Control

Remote Control Protocol: Command Code to set system




  9-36V DC Input

iTech offers a selection of DC input from 9V to 36V.



  Light Sensor and Motion Sensor

iTech LCD offers Light and Motion Sensor

Privacy Filter
Front Glass Options:
- Anti Reflective AR Glass 3mm
- Anti Reflective AR Glass 6mm Vandal-Resistance
- Anti Reflective AR Glass 8mm Vandal-Resistance
- Anti Glare AG Glass 3mm

Function Items Description Remark
Display Display area (mm) 1428.5 (H) x 803.5 (V) 64.53" 16:9 diagonal
Brightness (nits) 1000
Optimum resolution 1920 x 1080 IPS TFT
Contrast Ratio 1300:1
View angle (H/V) 178 /178 degree All direction
Backlight Life 50,000 hours (typ.)
System Video input VGA / DVI / HDMI
Video output NA
Audio output Built-in Yes
Extend (Option)
Memory NA
Storage NA
Ethernet NA
Wireless NA
Touch panel Type NA
Protection glass NA
Support OS NA
Special Control Manual (Option)
OSD 5 keys at back side
RS232 (Option)
Display feedback NA
Power Power Input voltage AC 100~240V
Consumption(W) 435 / (typ)
Mechanical Outline (mm) 1450.9 x 832.0 x 107.2 (D)
Mounting 600x400 (mm) VESA
Others NA
Environment Operating temp. 0~45 °C
Storage temperature -10~55 °C
IP protection NA
Anti-vandal (TBD)
Auto brightness Yes
Outdoor visibility enhance TBD
Direct sunlight NA
Certification CE FCC
