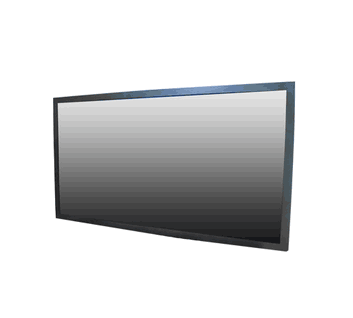

55" Wide LCD Monitor Front Water and dust Proof IP65/NEMA 4 with IP65 Solid Back housing except I/O, 1920x1080, 450nits VGA + DVI Input Rear OSD (Model: CCHW5500IP)

55" Wide LCD Monitor Front Water and dust Proof IP65/NEMA 4 with IP65 Solid Back housing except I/O, 1920x1080, 450nits VGA + DVI Input Rear OSD (Model: CCHW5500IP)

55" Wide LCD Monitor Front Water and dust Proof IP65/NEMA 4 with IP65 Solid Back housing except I/O, 1920x1080, 450nits VGA + DVI Input Rear OSD (Model: CCHW5500IP)

Main Feature

    • High Contrast color TFT LCD Monitor support resolution up to FULL HD (1920 x 1080)
    • Power management system conforms to VESA DPMS and EPA Energy Star standards.
    • Full consideration for touch screen installation and application.
    • Universal Power adapter.
    • Support DDC1 & DDC2B for Plug & Play compatibility.
    • Advanced OSD control for picture quality adjustment.
Inquiry/Quote Request
CCHW5500IP
  • Overview
  • Specifications
  • Download
  • Contact Sales

Rugged IP65/NEMA4X Industrial touch screen monitor, iTech is the perfect solution for Dusty and Wet industrial environments. Heavy duty Metal housing with powder coating and affordable.

  • • High Contrast color TFT LCD Monitor support resolution up to FULL HD (1920 x 1080)
  • • Power management system conforms to VESA DPMS and EPA Energy Star standards.
  • • Full consideration for touch screen installation and application.
  • • Universal Power adapter.
  • • Support DDC1 & DDC2B for Plug & Play compatibility.
  • • Advanced OSD control for picture quality adjustment.
  • • Detachable stand for wall-mounting application.
  • • Heavy duty Monitor with steel frame.
  • • Front IP64/NEMA4X Optional with PCAP or 5 Wire Resistive Touch Screen Options
  • • IP65 Solid Back housing except I/O and VESA mounting
  • • Custom design by request.
Display Viewing Size Image 55"
Active Display Area (mm) 1209.6 (H) x 680.4 (V)
Pixel Pitch (mm) 0.21(H)x 0.63(V)
Resolution 1920 x 1080
Contrast Ratio 4000:1(typ.)
Color 1073.7M (10bits/color)
Viewing Angle -89~89 (H) ; -89~89 (V)
Brightness 450 cd/m2
Recommended Resolution 1920 x 1080 @ 60Hz
Signal Connector VGA,DVI
Power Source AC100V~AC240V
Consumption 170W typical, normal operation
Management VESA DPMS Compliant
Optional Touch Resistive, PCAP ,IR
High Brightness 1000,1500
Auto Dimming YES
POWER in DC24V
Remote Control YES

IO		 Video: VGA + DVI
Power: 12 VDC External power supply 100-240 VAC 50-60Hz included
