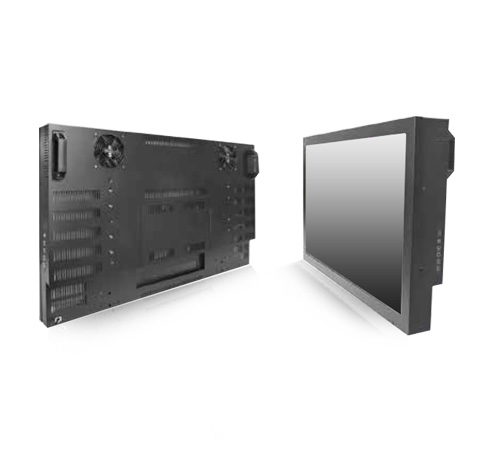

55" Wide Chassis Panel-PC with i5-CPU, 1920x1080, 4GB DRAM, 500GB HDD Projected capacitive touch (2-Points) Portrait Mode, without stand (Model: EPCW5500HDi5-PCAP)

Panel	Cell Type / Glass Surface	TFT LCD / Black Anti-Glare, low reflection coating
	Aspect Ratio / Size	Wide / 55" viewable diagonal area
	Active Area / Pixel Pitch	1209.6(H) x 680.4(V) mm / 0.315(H) x 0.315(V) mm
	Native Resolution / Colors	1920(H) x 1080(V) / 16.7M
	Brightness / Contrast	350 cd/m2 (typ) / 3000 : 1
	Response Time	≤ 8 ms (G-to-G)
	Viewing Angle (typical)	H.178° (- 89° ~ + 89°) , V. 178° (- 89° ~ + 89°)
	Light Source	LED backlight, Long life, 35,000 hrs (typ)
System	CPU	Support for Intel Core i7 / i5 / i3 / Celeron (Skylake-S)
	BIOS	UEFI
	System / Graphic Chipset	Intel H110
	System Memory	2 x DDR4 SO-DIMM slots, up to 32GB 2133MHz
	HDD	500GB HDD
	I/O port	1 x HDMI
		4 x USB 3.0
		1 x Display Port
		1 x Headphone Jack
	Expension	1 x Mini PCI-e
Power	Power Input	Built-in power system with 110/220VAC auto-switch
Power	Power Consumption	205 Watt, <1 Watt
Operating Condition	Temperature / Humidity	0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation)
Dimensions	Physical	Please refer to Drawing
Dimensions	Carton	W x H x D = TBD

Projected Capacitive	Transparency	90%±2%
Touch - MultiTouch	Resolution	2048 x 2048
(6mm Anti-Vandal glass)	Support Points	Dual Points
	Touch Method	Finger, gloved hand or any other pointer
