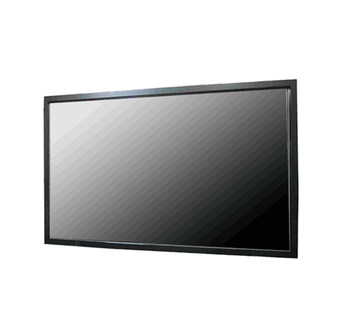

55" Heavy Duty Steel Chassis 4K 3840 x 2160 resolution brightness 500 nits, HDMI x 2, Display port x 2 input, Side OSD control buttons to optimized Display 110VDC Power Input (Model: ACHW5500K-72-i5)

55" Heavy Duty Steel Chassis 4K 3840 x 2160 resolution brightness 500 nits, HDMI x 2, Display port x 2 input, Side OSD control buttons to optimized Display 110VDC Power Input (Model: ACHW5500K-72-i5)

55" Heavy Duty Steel Chassis 4K 3840 x 2160 resolution brightness 500 nits, HDMI x 2, Display port x 2 input, Side OSD control buttons to optimized Display 110VDC Power Input (Model: ACHW5500K-72-i5)

Main Feature

    • HDMI x 2, Display port x 2 input
    • Side OSD Control Buttons to Optimized Display
    • Heavy duty steel chassis
    • Speakers x 2EA/WiFi card with antenna (2.4G & 5G) x 2EA
    • RSD-300D-24 Power Board Built-in
    • Power input: 110VDC input with Terminal + and - Block
    • Win 10 64bit Pro installation
Inquiry/Quote Request
ACHW5500K-72-i5
  • Specifications
  • Download
  • Contact Sales



Panel Specifications 		Size/ Type 55 " TFT Industrial Panel
Resolution 3840x2160
Brightness 500 cd/m
Contrast Ratio 4000 : 1 (typ.)
Viewing Angle - 89-89 (H); - 89 -89 (V)
Max. Colors 1.07 billion
Touch Optional
Environment Tolerance Operating Temperature 0 ~50°C
Operating Humidity 10~90%,n on-condensing




System 		CPU Intel Skylake / Kabylake U Processor ( TDP 15W, default CPU i5-7200U )
Memory Dual-channel DDR4( non-ECC ) 2133MHz, Up to 32 GB
Storage 1xSATA3.0;1xmSATA ( shared w/ Mini-PCIe )
LAN 1 xlntell219-LMGbE-PHY
1 x Intell211-AT PCIe GbE LAN
Audio Realtek ©ALC887 HD Audio Codec



Input/Output 		Serial Ports 6 x COM( 5 x internal RS232, 1 x Internal RS232 / 422 / 485 )
USB Ports 4 x External USB3.0, 2 x External USB1.1 / 2.0,
5 x Internal USB1.1 /2.0
PS/2 N/A
Paeallel N/A
Audio Line Out
GPIO 8-bits
Power Specifications Power Input 110VDC input with Terminal + and - Block
Power Cord N/A


Order Options 		OS Windows 7/8.1/10( 64-bit)
Storage By customer request
Memory Up to 32 GB
Touch P-CAP, IR
