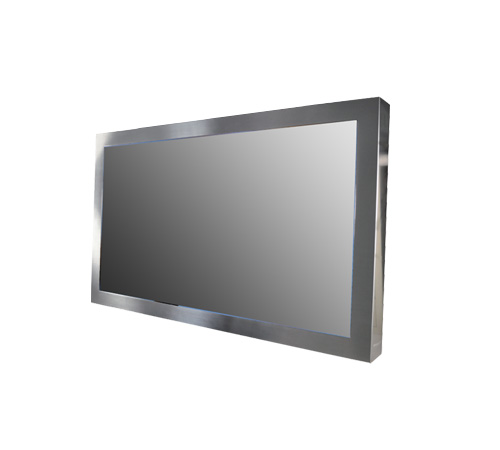

55" SUS 304 Enclosures w/ Full IP66 Wall Mount, PCAP Touch, DVI, HDMI, Touch and 100-240VACV (Model: SCHW5500SFTC)
55" Industrial Panel / 1920x1080 / 450nits SUS 304 Enclosures with Full IP66 Wall Mount, PCAP Touch, DVI, HDMI, USB ( for Touch use ), RS232 and 100-240VACV Power Input
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| The 55-inch SUS 304 Stainless Steel Full IP66 Wall Mount PCAP Touch Monitor is engineered for demanding industrial environments where durability, hygiene, and reliable touch performance are essential. Featuring a 1920 x 1080 Full HD display, Projected Capacitive (PCAP) touchscreen, and a SUS 304 stainless steel enclosure with Full IP66 protection, this rugged display is ideal for food processing, pharmaceutical manufacturing, chemical plants, marine applications, and washdown environments. Its waterproof connectors, corrosion-resistant housing, and wall-mount design ensure dependable operation in harsh conditions while delivering responsive multi-touch interaction and outstanding image quality. |
Features: |
|
| Display | Viewing Size Image | 55" |
| Active Display Area (mm) | 1211.60 (H) x 682.60 (V) | |
| Pixel Pitch (mm) | 0.21(H)x 0.63(V) | |
| Resolution | 1920x1080 | |
| Contrast Ratio | 4000 : 1 (typ.) | |
| Color | 1073.7M (10bits/color) | |
| Brightness | 450nits | |
| Viewing Angle | -89~89 (H) ; -89~89(V) | |
| Recommended Resolution | 1920 x 1080 @ 60Hz | |
| Power | Source | 100-240VACV Power Input |
| Consumption | 170W typical, normal operation | |
| Management | VESA DPMS Compliant |
