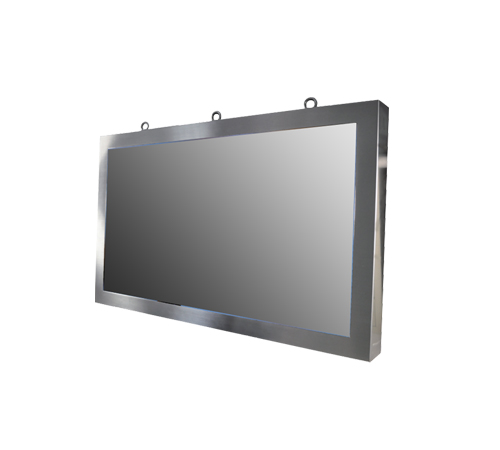

55" Stainless Steel High-Brightness LCD Display PCAP Touch w/ VGA, HDMI / 100-240VAC (Model: CCHW5500HB2-SIP-TC)

55" Stainless Steel 304 Full IP66 LCD Display High Brightness Industrial Panel / 1920x1080 / 2500nits Wall Mount, PCAP Touch, VGA, HDMI, 100-240VAC Power Cord and 100VAC Power Cord (for Heater use)

55" Stainless Steel 304 Full IP66 LCD Display High Brightness Industrial Panel / 1920x1080 / 2500nits Wall Mount, PCAP Touch, VGA, HDMI, 100-240VAC Power Cord and 100VAC Power Cord (for Heater use)

Inquiry/Quote Request
CCHW5500HB2-SIP-TC
  • Overview
  • Specifications
  • Download



Features:
  • 55" Industrial Panel / 1920x1080 / 2500nits / High TNI
  • Stainless steel 304 enclosures with Full IP66 / wall mount
  • PCAP Touch
  • Air Curtain Design Inside
  • Blanket heater ( 100VAC / 510W ) with Temp. control / Heater ON-OFF switch
  • Venting Valve x2
  • Add Silica Gel Bags inside to Reduce the Moisture.
  • Removed the inside air from venting valve in the final installation step
  • Added thermal pad / insulation sheet inside the back enclosures cover
  • I/O ( All Connectors are Waterproof Connectors / 6ft long ): VGA, HDMI, 100-240VAC power cord and 100VAC power cord ( for Heater use )
  • Environmental Board Installation Inside ( reduce brightness 30% when inside Temp. reach at 50C )
  • Blanket Heater ( 510W / 100VAC ) / Temp. controller ( 5C_ON, 15C_OFF ) / Heater Power ON_OFF switch
Display Viewing Size Image 55”
Active Display Area (mm) 1213 (H) x 684 (V)
Pixel Pitch (mm) 0.21(H)x 0.63(V)
Resolution 1920x1080
Contrast Ratio 4000 : 1 (typ.)
Color 1073.7M (10bits/color)
Brightness 2500nits
Viewing Angle -89~89 (H) ; -89~89(V)
Recommended Resolution 1920 x 1080 @ 60Hz
Signal Connector VGA, HDMI
Power Source 100-240VAC power cord and 100VAC power cord ( for Heater use )
Consumption 170W typical, normal operation
Management VESA DPMS Compliant
