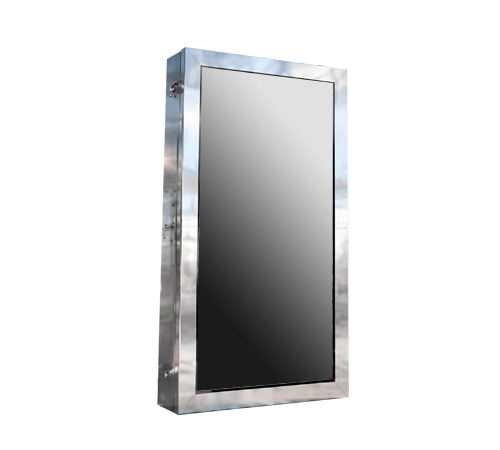

55" Portrait 2500nits Full IP66 Stainless Steel Panel PC w/ JLI1BV-0L / J6412, RAM 4GB / SSD 256GB, Win 11 Pro (Model: CCHW5500H2-P-J)

55-inch-portrait-full-ip66-stainless-steel-panel-pc-cchw5500h2-p-j

55-inch-portrait-full-ip66-stainless-steel-panel-pc-cchw5500h2-p-j

Inquiry/Quote Request
CCHW5500H2-P-J
  • Overview
  • Specifications
  • Download
The CCHW5500H2-P-J 55" Portrait Full IP66 Stainless Steel Panel PC is designed for demanding industrial and commercial environments that require a large-format integrated computing and display solution with robust environmental protection. Featuring a durable stainless steel enclosure and a fully IP66-rated design, this panel PC is engineered to resist dust ingress and powerful water jets, making it suitable for applications where cleanliness, durability, and reliable operation are essential.

With its rugged construction and space-efficient integrated design, the CCHW5500H2-P-J is suitable for industrial process monitoring, manufacturing facilities, commercial information systems, digital signage, and other applications requiring a large portrait-oriented display in a demanding environment.


Features:
  • 55" industrial panel / 1920 x 1080 / 2500nits / High TNI / Portrait
  • Operation Temp. : -15C to 50C( with heater)
  • SUS 304 enclosures with Full IP66 / wall mount
  • AR glass with 3M Rejection film
  • Air curtain design inside / venting valve x 2pcs / eye bolt
  • Environmental board installation inside ( reduce brightness 30% when inside Temp. reach at 50C )
  • Fanless design
  • JLI1BV-0L / J6412 ( 4M Cache, up to 2.60GHz Intel® Celeron™ Processor ) / RAM 4GB / SSD 256GB
  • I/O ( all connectors are IP67 waterproof connectors / 6ft cable length ) : VGA x1, USB x1, LAN x1, RS232 x1 and 100-240VAC power input
  • Win 11 Pro 64bit installation
  • Added Silica gel bags inside to reduce the moisture
  • Added thermal pad / insulation sheet inside the back enclosures cover
  • Removed the inside air from venting valve in the final installation step
  • Sun hood
  • Blanket heater ( 510W / 100 or 220VAC ) / Temp. controller ( 5C_ON, 15C_OFF ) / Heater ON_OFF switch /  waterproof  AC power cord  It has the separated Heater Power ON/OFF switch to avoid condensation issue.a
Display Viewing Size Image 55"
Active Display Area (mm) 1213 (H) x 684 (V)
Pixel Pitch (mm) 0.21(H)x 0.63(V)
Resolution 1920x1080
Contrast Ratio 4000 : 1 (typ.)
Color 1073.7M (10bits/color)
Brightness 2500 cd/㎡
Viewing Angle -89~89 (H) ; -89~89(V)
Recommended Resolution 1920 x 1080 @ 60Hz
Input/output VGA x1, USB x1, LAN x1, RS232 x1
Power Source 100-240VAC power input
Consumption 170W typical, normal operation
Management VESA DPMS Compliant
