55" Rugged High Impact Military Display for Railway Application Bezel w/ VGA, HDMI, DP, AC100~264V (Model: NmilW5500-EN51)

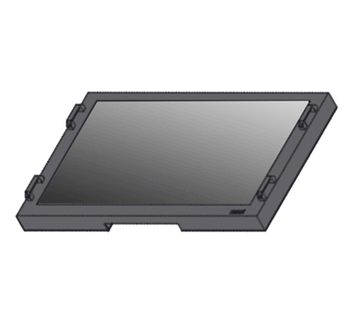

55" Rugged IK-10 (IEC-62262) Rugged High Impact Military Display for Railway Application Bezel with VGA / HDMI / DP, AC100~264V

Overview
Specifications
Download

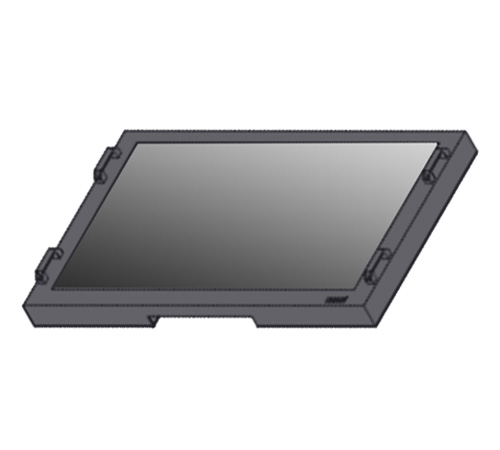

The 55-inch EN50155 high impact resistant display is built for demanding railway, transportation, and industrial environments where durability and reliability are critical. Designed with a rugged galvanized steel enclosure and reinforced protection glass, this military-grade display offers excellent resistance to shock, vibration, and harsh operating conditions.

Features:

Rugged 55" high-impact military display for railway use
Galvanized steel chassis with anti-corrosion treatment
IP54 front, semi-gloss black (RAL-9005)
Integrated 2 rugged handles, IK10 thick protection glass
55" LCD, 1920 x 1080, 450 cd/m², 16.7M colors
VGA, HDMI, DP inputs
AC 100264V power
EN50155 compliant (excludes EN50155 testing costs)
Environmental

LCD	Display Size	55" TFT LCD diagonal
	Resolution	1920 x 1080 FHD
	Brightness	450 cd/m2
	Contrast Ratio	4000 : 1
	Aspect Ratio	16 : 9
	Display Color	16.7 M
	LED Backlight	LED backlight
	Viewing Angle	89 / 89 / 89 / 89 ultra wide angles
Protective Glass	Protective Glass	IK10 Protection Glass
Protective Glass	Glass Type	build in ultra thick strengthen protection glass
EMI / EMC	EMI / EMC Mesh	Yes, built in
Mechanical	Front Bezel	Military grade 64430 Aluminum alloy with anti-corrosion treatment
	Mount	Front Mount, Console Mount VESA-100 Mount
	Enclosure	Heavy-duty galvanized steel with anti-corrosion treatment
	Color	Semi-gloss in black
	Handle	2 x aluminum alloy handles for easy handling
Mount	Front Mount	Yes, front mount
	Panel Mount	Yes, panel mount
	VESA Mount	Yes, VESA-300x200 mount
Control Button	OSD Control Buttons	On-Off, Brightness, Contrast, etc.
Control Button	OSD Buttons	5-Key OSD control buttons
Dimension	Exclude Front Bezel	683 (W) x 429 (H) x 69 (D)mm
	Include Front Bezel	683 (W) x 429 (H) x 83 (D) mm
	Handles	Yes, 2 rugged grips
I/O Port	VGA	1 x VGA
	DVI	1 x DP
	HDMI	1 x HDMI
	Audio	2 x Audio
	Power	1 x AC or DC with military circular connector, dust cap, and mating

Power Supply	AC Power Input	AC 100264V
	Isolation	Yes
	Over Voltage Protection	Yes
	Over Current Protection	Yes
	Power Supply	>12 Countries safety approvals
	Safety Approvals
Environmental	Railway application	EN 50155 compliant
	Vibration	EN 61373 compliant
	Shock	EN 61373 compliant
	Operating Temperature	0° to +45°C
	Storage Temperature	-20° to +80°C
	Humidity	5% to 95% R.H. at 35°C, non-condensing
	IP Rating	IP54 front
EMI / EMC	CE	Approval
	FCC	Approval
