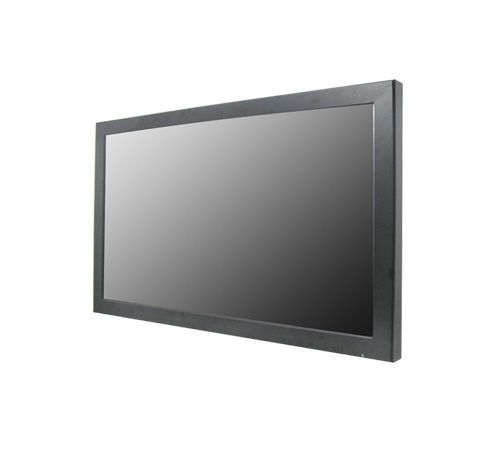

4K 55" All in one PC Front IP65 Chassis Mount w/ MF04V00 / Intel Celeron, RAM 8GB, SSD 480GB (Model: CCPCW5500K-J-TC)

4K 55" Industrial Panel Chassis Design 3840x2160, 500nits P-CAP Touch, Front IP65 with MF04V00 / J6412 (1.5M Cache, up to 2.60GHz Intel Celeron Processor) / RAM 8GB / SSD 480GB 100-240VAC Power Input Win 10 IoT 2019 LTSC installation and label

4K 55" Industrial Panel Chassis Design 3840x2160, 500nits P-CAP Touch, Front IP65 with MF04V00 / J6412 (1.5M Cache, up to 2.60GHz Intel Celeron Processor) / RAM 8GB / SSD 480GB 100-240VAC Power Input Win 10 IoT 2019 LTSC installation and label

Inquiry/Quote Request
CCPCW5500K-J-TC
  • Overview
  • Specifications
  • Download
The 55-inch All-in-One PC with Front IP65 Chassis Mount by iTech delivers robust performance and durability for demanding industrial applications. Engineered with a front-rated IP65 protection against dust and water ingress, this large-format integrated PC combines high-visibility display with a chassis mount form factor ideal for control rooms, manufacturing floors, kiosks, and public environments. Powered by an Intel Celeron processor and designed for seamless integration, it ensures reliable computing and stable operation in harsh conditions. Perfect for environments requiring ruggedized hardware and long-term performance.


Features:
  • 55" Industrial Panel / 3840x2160 / 500nits
  • Chassis Design / Wall Mount
  • P-CAP Touch / Front IP65
  • SWOP PC Tray Design
  • Fan Design
  • All Black Powder Coating
  • MF04V00 / J6412 (1.5M Cache, up to 2.60GHz Intel Celeron Processor) / RAM 8GB / SSD 480GB
  • 100-240VAC power input
  • Win 10 IoT 2019 LTSC installation and label
Display Viewing Size Image 55"
Active Display Area (mm) 1213 (H) x 684 (V)
Pixel Pitch (mm) 0.21(H)x 0.63(V)
Resolution 3840x2160
Contrast Ratio 4000:1(typ.)
Color 1073.7M (10bits/color)
Viewing Angle -89~89 (H) ; -89~89 (V)
Brightness 500 cd/m2
Recommended Resolution 3840x2160 @ 60Hz
Power Source 100-240VAC
Consumption 170W typical, normal operation
Management VESA DPMS Compliant
Touch Touch PCAP Touch


Motherboard SPECS:
  • Intel Elkhart Lake SoC Processor
  • 2* DDR4 3200MHz Dual Channel SO-DIMM up to 32GB
  • 2* Intel i225V 2.5GbE
  • 2* HDMI2.0b, 1* eDP (co-layout LVDS)
  • 2* COM, 3* USB3.1 (Gen.2), 5* USB2.0
  • 1* M.2 E-key 2230, 1* M.2 B-key 3042 W/SIM card slot
  • 1* M.2 M-key 2242/2280, 1* SATAIII (6Gb/s); 64GB eMMC (default)
  • Support 12~24V DC-in

Processor System Intel Elkhart Lake J6412 SoC Processor (TDP10W)
AMI Flash ROM BIOS
Memory 2* SO-DIMM DDR4 3200MHz Dual Channel SDRAM up to 32GB
Ethernet 2* Intel® i225V 2.5GbE
Storage 1* SATAIII
64GB onboard eMMC (MF04V04 & MF04V08)
1* M.2 M-key (2242/2280) PCIe Gen.3 x2/SATA interface Support NVME
Rear I/O 3* USB3.1 (Gen.2), 3* USB2.0
2* HDMI
2* RJ45
Line-out/MIC combo jack
DC-in (12~24V)
Watchdog Timer From Super I/O to drag RESETCON#
256 segments (10sec ~ 255min)
Form Factor 3.5” (5.8-in * 4.0-in, 148 * 102mm)
Expansion Slot 1* M.2 B-key (3042) Support USB3.1/USB2.0 interface W/SIM card slot
1* M.2 E-key (2230) Support USB2.0/PCIe Gen.3 x1 interface
Graphics Intel® HD Graphics, shared memory
1* eDP (Max Resolution: 4096x2160@60Hz)
1* LVDS (Max Resolution: 1920x1080@60Hz)
2* HDMI2.0b (Max Resolution: 4096x2160@60Hz)
Audio 2 channel HD audio: Realtek ALC888S
Integrated Storage N/A
Internal Connector 2* USB2.0
1* eDP (co-layout LVDS)
1* LVDS w/ Inverter
1* RS232, 1* RS232/422/485
1* SATAIII
1* SIM card slot (along with M.2 B-key)
1* GPIO (8 bit)
1* Audio Header
1* SMBUS
1* CPU FAN
1* TPM2.0 onboard (MF04V02 & MF04V07)
Power DC-IN 12~24V
AT/ATX Supported
- AT: Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
Temperature
Operating 0°C ~ 60°C
Storage -20°C ~ 85°C
Humidity 10% ~ 90% RH @40°C (non-condensing)
Compliance CE, FCC, LVD, RoHS, REACH
OS Support UEFI Win10 64-bit, Win 10 IoT Enterprise 64-bit LTSC 2019, CentOS (Version 9), Debian (Version 11.3), Fedora-LXDE (Version 36-1.5), Fedora Workstation (Version36-1.5), Fedora Server (Version 36-1.5), Open SUSE (Version  15.4), Ubuntu Standard / LTS (Version 22.04), Ubuntu Server (Version 22.04), pfSense (Version 2.6.0), TrueNAS (FreeNAS) (Version 13.0), RedHat Enterprise (Version 9.0), OPNSense (Version 22.1.2)
