55" 1500R Curved 4K UHD PCAP Touch Display 550 nits w/ Tempered Glass Explosion-Proof Glass (Model: JOPC5500-PCT-M1)
55" 1500R Curved 4K UHD PCAP Touch Display 550 nits with Tempered Glass Morse 7 Explosion-Proof Glass
X
Inquiry/Quote Request
- Overview
- Specifications
- Download

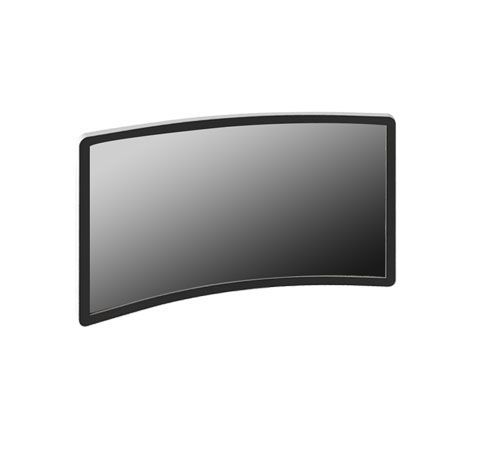

| The JOPC5500-PCT-M1 is a 55-inch curved 4K UHD touch display designed for immersive visual experiences and intuitive interaction. Featuring a 1500R curvature, ultra-high resolution, 10-point projected capacitive touch technology, and wide 178° viewing angles, this display delivers stunning clarity and responsiveness. Ideal for control centers, interactive kiosks, retail displays, and digital signage, it combines industrial-grade reliability with sleek design. |
Features: |
|
| LCD panel | Display area | 55 inch |
| Display ratio | 16:9 | |
| Backlight | LED | |
| Life time | Over 50,000 hours | |
| Resolution ratio | 3840×2160 | |
| Brightness | 550cd/m2 | |
| Contrast ratio | 4000:1 | |
| Response Time | 8ms | |
| Pixel Pitch | 0.363×0.121mm | |
| Display color | 16.7M | |
| Viewing angle | H/V178°/178° | |
| Curvature | R1500 | |
| PCAP spec. | TP solution | projective capacitive touch technology( G+FF) |
| Response Time | <5ms | |
| Touch points | 10 points touch | |
| Touch effective recognition | >1.5mm | |
| Scanning frequency | 200HZ | |
| Scanning precision | 4096 x 4096 | |
| Communication mode | Full speed USB2.0/SB3.0 | |
| Theoretical hits | Over 50,000,000 times | |
| Operating current and voltage | 220mA/DC+5V+/-5% | |
| Anti-light interference | Sunlight, incandescent lamp, fluorescent lamp And other strong light changes normally |
|
| Touch data output mode | Coordinate output | |
| Surface hardness | Tempered glass, Morse 7 explosion-proof glass | |
| Operating System | Android / Windows | |
| Drivers | Drive free, plug and play | |
| LED lamp | Horse Race Lamp (Optional) | |
| Dimension | L1263mm *W760*H129.3mm NW:34kg | |
