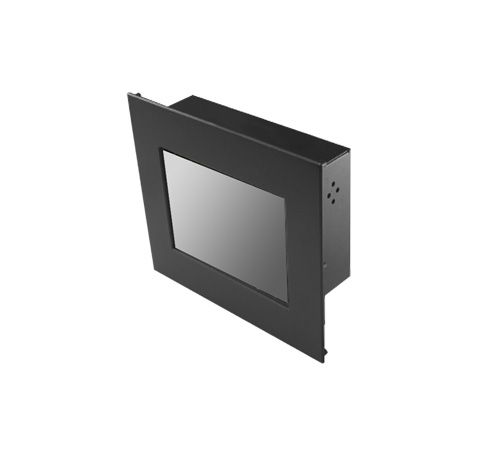

5.7" Military Grade IP66 Front Panel Mount LCD Monitor w/ VGA, HDMI, DVI, MIL-STD-810G (Model: EMPM057WT)

Military Grade, IP66 Front Panel Mount, 5.7" LCD Monitor, 640x480, LED-400nits, WT(-30~80C), 12VDC-IN w/ Adapter I/O: VGA+HDMI+DVI Compliance: MIL-STD-810G Power 9~36V DC (Compliance MIL-STD-1275D)

Military Grade, IP66 Front Panel Mount, 5.7" LCD Monitor, 640x480, LED-400nits, WT(-30~80C), 12VDC-IN w/ Adapter I/O: VGA+HDMI+DVI Compliance: MIL-STD-810G Power 9~36V DC (Compliance MIL-STD-1275D)

Inquiry/Quote Request
EMPM057WT
  • Overview
  • Specifications
  • Download
The EMPM057WT is a compact 5-inch military-grade LCD monitor designed for high-reliability applications in demanding environments. Engineered with an IP66-rated front panel, this rugged display offers superior protection against water, dust, and debris. It features a high-brightness screen, resistive touchscreen, wide voltage DC input, and compliance with MIL-STD-810G, making it ideal for tactical, industrial, and defense-based operations where performance and durability are critical.


Features:
  • Front panel sealed to IP66 for protection against water and dust
  • Modular mechanical design allows for flexible configuration and easy maintenance
  • Optional auto-brightness sensor for seamless day and night operation
  • VGA input standard, with optional AV, S-Video, and AV Looping support
  • MIL-STD-810G compliant for rugged performance in harsh environments
  • Wide range 9~36V DC input, compliant with MIL-STD-1275D
Cell Type TFT LCD
Glass Surface Black Anti-Glare, low reflection coating
Aspect Ratio 4 : 3
Size 5.7" viewable diagonal area
Active Area 116(H) x 87.2(V) mm
Pixel Pitch 0.18(H) x 0.18(V) mm
Native Resolution 640(H) x 480(V)
Colors 262 K
Brightness 400
Contrast 800 : 1
Response Time ≤ 25 ms
Viewing Angle (typical) H. 160°(- 80°~ + 80°) , V. 140°(- 70°~ +70°)
Light Source LED backlight, Long life, 35,000 hrs (typ)

CERTIFICATION
FCC , CE
INPUT TERMINALS
1 x VGA , 1 x HDMI , 1 x DVI , 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
CONVENIENT FEATURES
Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B) , OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
POWER
9~36V DC-IN with External Power Adapter
POWER CONSUMPTION
Operation / Power Saving 8.25 watt , < 1 watt (Support DPMS)
OPERATING CONDITION
Temperature / Humidity -30°C ~ 80°C (-22°F ~ 176°F), 10%~ 90% (no condensation)
STORAGE CONDITION
Temperature / Humidity -30°C ~ 80°C (-22°F ~ 176°F), 10%~ 90% (no condensation)
DIMENSIONS
Physical Please refer to Drawing
Carton W x H x D = TBD
WEIGHT
N.W. / G.W. 2.0 Kgs/3.0 Kgs
CONTAINER LOADED
20ft / 40ft / 40ft HQ TBD (Sets , By pallet)
