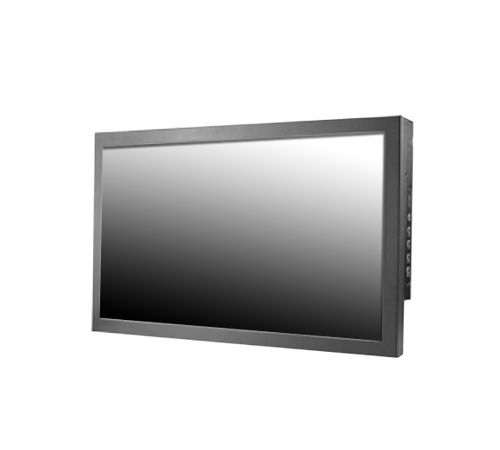

4K 55" Wide LCD Chassis Monitor Metal Housing, 450nits, PCAP w/ AG Coating, VGA, DVI, HDMI, DP (Model: OCHW5500-PCT-4KC)

55" Wide LCD VESA/Chassis Monitor Metal Housing 3840 x 2160 / 450 nits, P-CAP with AG coating (10 points) VGA, DVI, HDMI, DP, USB (for Touch use) and 100-240VAC Power Cord

55" Wide LCD VESA/Chassis Monitor Metal Housing 3840 x 2160 / 450 nits, P-CAP with AG coating (10 points) VGA, DVI, HDMI, DP, USB (for Touch use) and 100-240VAC Power Cord

Inquiry/Quote Request
OCHW5500-PCT-4KC
  • Overview
  • Specifications
  • Download
The OCHW5500-PCT-4KC is a professional-grade 55-inch 4K UHD chassis monitor engineered for durability and outstanding visual performance. Housed in a robust metal chassis, this large-format display integrates a high-resolution panel with projected capacitive (PCAP) touch technology, enabling fast and accurate touch response. Ideal for industrial control rooms, digital signage, interactive kiosks, and commercial environments, the OCHW5500-PCT-4KC delivers brilliant image clarity, intuitive interaction, and long-term reliability in demanding applications.


Features:
  • 55" Industrial Panel / 3840x2160 / 450nits
  • Chassis Design / VESA Mount
  • PCAP Touch ( Multi Points ) / Front IP65
  • Speakers
  • Metal Housing, All Black Powder Coating
  • I/O: VGA, DVI, HDMI, DP, USB ( for Touch use ) and 100-240VAC Power Cord
Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low refection coating
Aspect Ratio / Size Wide / 55" viewable diagonal area
Active Area 1213(H) x 684(V) mm
Native Resolution 3840(H) x 2160(V)
Brightness 450 cd/m2 (typ)
Response Time < 9.5 ms (G-to-G)
Viewing Angle (typical) H.178° (- 89° ~ + 89°) , V. 178° (- 89° ~ + 89°)
Light Source LED backlight, Long life, 35,000 hrs (typ)
Input Sources Audio System 2W speaker x 2
Input Terminals VGA, DVI, HDMI, DP, USB ( for Touch use )
Power 100-240VAC power cord
Power Consumption Operation / Power Saving 73.75 watt , < 1 watt (Support DPMS)
Operating Condition Temperature / Humidity 0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20°C ~ 60°C (- 4°F ~ 140°F) , 10% ~ 90% (no condensation)
Certification   FCC , CE
Dimensions Physical Please refer to Drawing
Carton W x H x D = TBD
Weight N.W. / G.W. TBD
Container Loaded 20ft / 40ft / 40ft HQ TBD (Sets , By pallet)
