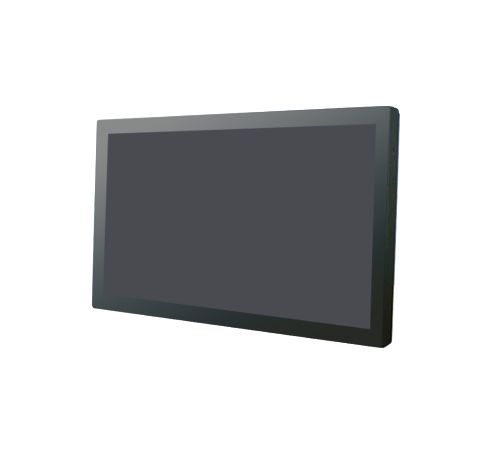

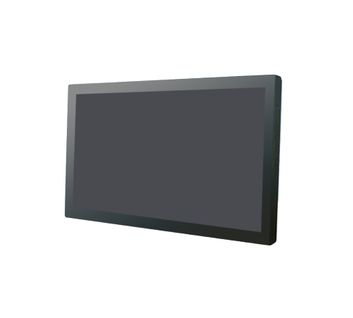

4K 27" Front IP65 True Flat Design Chassis Mount Touch LCD w/ VGA, DP, HDMI and DC 24V Power Input (Model: YCHW2700K-TC)

27" Touch Monitor / 3840x2160 (4K) / True Flat design / Front IP65 / 500nits LED / 1xVGA , 2xDP , 2xHDMI signal input / VESA mount / PCAP Touch with USB controller (10-points in Win7/10/11) / DC 24V Power input with external AC Power Adapter

27" Touch Monitor / 3840x2160 (4K) / True Flat design / Front IP65 / 500nits LED / 1xVGA , 2xDP , 2xHDMI signal input / VESA mount / PCAP Touch with USB controller (10-points in Win7/10/11) / DC 24V Power input with external AC Power Adapter

Inquiry/Quote Request
YCHW2700K-TC
  • Overview
  • Specifications
  • Download
Experience stunning clarity and rugged durability with the 27" 4K Front IP65 True Flat Touch LCD – Model YCHW2700K-TC. Boasting ultra-high-definition 3840x2160 resolution, a hard-wearing IP65-rated true flat front, and versatile 10-point PCAP touch, this display delivers both premium performance and reliability. Designed for seamless integration, it supports multiple inputs (VGA, DisplayPort x2, HDMI x2), features VESA-compatible and chassis-mount design, and operates on a 24V DC power supply with an included AC adapter-making it ideal for industrial, commercial, and kiosk environments.


Features:
  • 27" Touch Monitor
  • 3840 x 2160 (4K) resolution
  • True Flat design
  • Front IP65 protection
  • 500 nits LED brightness
  • Signal inputs: 1x VGA, 2x DP, 2x HDMI
  • VESA mount compatible
  • PCAP Touch with USB controller (10-point touch, Windows 7/10/11)
  • DC 24V power input with external AC Power Adapter
Panel Type 27.0-inch TFT LCD
Screen Diagonal 27.0-inch
Active Display Area (mm) 597.6 (H) x 336.15 (V)
Pixel Pitch (mm) 0.15525(H) x 0.15525(V)
Number of Pixels 3840x2160
Contrast Ratio 1000:1
Display Color 16.7M Colors (true 8bit)
Brightness (cd/m) 500 cd/m (Without Touch Screen)
Viewing Angle(Typ.) 89/89/89/89 ( R/L/U/D)
Signal Connector VGA, 2x DP, 2x HDMI
Power Source DC 24V with AC Adapter
Power Management VESA DPMS Compliant
Operating Temperature 0 ~ +50 °C
Storage Temperature -20 ~ +60°C
Plug & Play VESA DDC 1/2B
Touch Type Projected Capacitive Touch
 - Transparency > 85% (typ.)
 - Hardness of surface 6H
 - Linearity ±1.5%(max.)
Touch Interface USB Type B
