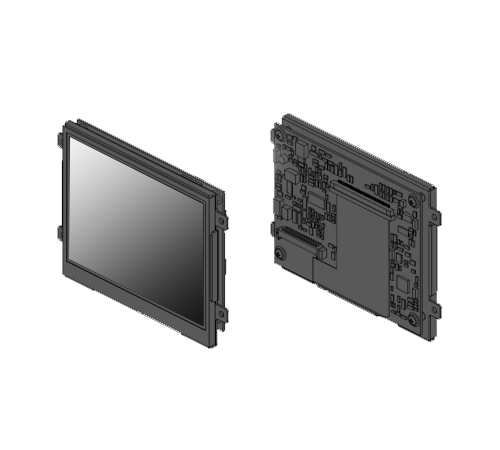

Open Frame 3.5" Digital TFT LCD 300nits, LED Driver All In One NTSC/PAL Input, Auto Switching Up/Down Reverse Screen (Model: FCOP0350)
Open Frame 3.5" Digital TFT LCD, 320 x 240 300nits DC/DC, LED Driver, Video Decoder All In One NTSC/PAL Video input Auto Switching, 4:3 Screen Mode, Up/Down Reverse Screen
Main Feature
- 3.5" Color TFT-LCD Panel
- Ultra Compact
- DC/DC, LED Driver, Video Decoder All In One
- NTSC/PAL Video input Auto Switching
- 4:3 Screen Mode
- Up/Down Reverse ScreenLeft/Right Reverse Screen
- Composite Video Input
- Single Operation Voltage +12V
X
Inquiry/Quote Request
- Specifications
- Download
- Contact Sales
| Panel Size | 3.5" |
| Resolution (Pixels) | 320 x 240 |
| Luminance | 300 cd/㎡ |
| Contrast Ratio | 400 |
| View Angle | 60 / 60 / 50 / 55 |
| LED Life Time | 10K (Min.) hours |
| Power Consumption@+12V | 960 m Watts |
| Input Signal System | CVBS |
| Input Video System | NTSC / PAL |
| Temperature Range | |
| Operating | -20 ~ +70°C |
| Storage | -30 ~ +80°C |
| High Temperature & High Humidity (Non-condensing) | |
| Operating | +40°C / 90% |
