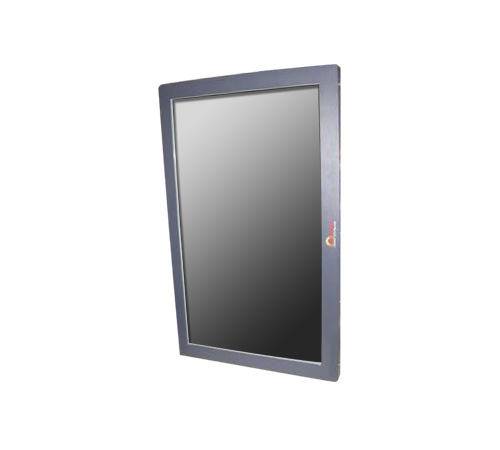

46" Portrait Mode 1500nits High Brightness High Tni LCD Monitor w/ IP65/NEMA4 Vandal Resistant Enclosures (Model: U4600P1)

46" Portrait Mode 1500nits High Brightness High Tni LCD Monitor w/ IP65/NEMA4 Vandal Resistant Enclosures

46" Portrait Mode 1500nits High Brightness High Tni LCD Monitor w/ IP65/NEMA4 Vandal Resistant Enclosures

Inquiry/Quote Request
U4600P1
  • Overview
  • Specifications
  • Download
The i-Tech U4600P1 46-inch industrial LCD monitor features a 1500-nit high-brightness display designed for daylight and outdoor viewing. Its high Tni panel helps prevent isotropic blackout under direct sunlight and high temperatures. The rugged IP65/NEMA 4 vandal-resistant enclosure, 6mm laminated safety glass, 24/7 operation, and wide operating temperature range make it suitable for demanding industrial and outdoor applications. The monitor supports 1920 x 1080 Full HD resolution, VGA, HDMI, and Mini DisplayPort inputs, with optional touch screen, computer, heater, CAT5 video extender, and portrait-mode configurations.


Features:
  • 1500nits Completely Sunlight Viewable IP65/NEMA4 Vandal Resistant Enclosures (5 sides)
  • (High Tni Panel Enhancement to prevent isotropic blackout under direct Sun up to 110°C/230°F)
  • Circular polarized light enable through polarized sunglasses
  • Built-in Waterproof Speakers 10Watts x 2
  • Air Curtain cooling design and Automatic Thermostatic cut off.
  • Optional Integrated Touch screen, Computer, Heater, Portrait mode and CAT5 Video Extender

Display Size: 46 Inch TFT-LCD
Resolution 1920 x 1080 Full HD
Frame Rate: 60Hz
Response Time: 8ms typical
Viewing Angle: 178° / 178°
Contrast Ratio: 4000 :1
Brightness: 1500 cd/m2, Completely Daylight Viewable
Orientation:
Backlight:		 Landscape Mode
60,000 Hours Typical
Colors Supported: 10bit 1.07 Billion
Interface: VGA, HDMI , Min Display Port
Audio Out: 3.5mm Audio output
Speaker: Included 10Watts x 2
Power Source: 100-120VAC  50/60Hz
Power Consumption: 245Watts (with heater 345 Watts)
Temperature: Operating: -15° to 60°C (5F to 140F) (Optional heater reach to -22F/-30C) Storage: -30° to 60°C
Humidity: Operating: 5 to 90% NC Storage: 5 to 95% NC
Operating Time 24/7/365
Dimensions: 46" (w) x 29" (h) x 7"(d)
Weight (Without Stand) 99lbs /45kg
IP Rating: Enclosures IP65/NEMA4 (Except Bottom is IP54)
RS232:
VESA Mount:		 Control via command code (Optional)
600 x 300/ 400

Glass: 6mm laminated Safety AR coating
Auto Power On/Off: Yes
Auto Signal On/Off: Yes
Options:       IR Touch screen/ Projective Capacitive Touch/ Wide Temp PC/ CAT5 Video Extender/portrait mode/Stainless steel Enclosures
Life time Life time 60K hours, operating Time 20 hours/Per day
Anti Shock/ Anti Vibration Shock 30G / Anti Anti Shock 35G XYZ , Anti-Vibration 1G (10-300Hz)
Warranty: Return to Depot Warranty1 year
