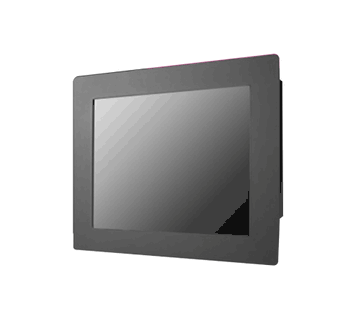

46" Panel Mount PC (with 3mm front stainless bezel) IP65/NEMA 4 w/ JNC8H-H310 / Intel Core i5-8500 (Model: CPMW4600-i5-V1)
46" Industrial Panel Mount PC( with 3mm front stainless bezel ) 1920 x 1080, 400 nits, Front Water and dust Proof IP65/NEMA 4 with IP65, JNC8H-H310 / i5-8500
CPMW4600-i5-V1
- Overview
- Specifications
- Download
LCD Specs |
Panel |
Cell Type / Glass Surface |
TFT LCD / Black Anti-Glare, low reflection coating |
Aspect Ratio / Size |
Wide /46" viewable diagonal area |
Active Area / Pixel Pitch |
1018.08(H) x 572.67(V) mm / 0.53(H) x 0.53(V) mm |
Native Resolution / Colors |
1920(H) x1080(V)/16.7M |
Brightness / Contrast |
400 cd/m2 (typ) / 3000 : 1 |
Response Time |
< 8 ms (G-to-G) |
Viewing Angle (typical) |
H.178°(-89°~ + 89°) , V 178°(- 89° ~ + 89°) |
Light Source |
LED backlight, Long life, 35,000 hrs (typ) |
Power |
100-240VAC Power Cord |
Power Consumption |
Operation / Power Saving |
117.2 watt, < 1 watt (Support DPMS) |
Operating Condition |
Temperature / Humidity |
0°C ~ 50°C (32°F ~ 122°F), 10% ~ 90% (no condensation) |
Storage Condition |
Temperature / Humidity |
- 20°C ~ 60°C (- 4°F ~ 140°F), 10% ~ 90% (no condensation) |
Certification |
|
FCC,CE |
Dimensions |
Physical |
Please refer to Drawing |
Carton |
WxHxD=TBD |
Weight |
N.W./G.W. |
38Kgs/41 Kgs |
Container Loaded |
20ft / 40ft / 40ft HQ |
TBD (Sets , By pallet) |
|
|
Motherboard Specs: |
Form Factor |
Dimensions |
- Thin Mini ITX ( 170 * 170mm) |
Processor System |
CPU |
- Intel LGA1151 Series Processor (Max. 65W) |
Core Number |
- by CPU |
Max Speed |
- by CPU |
L2 Cache |
- by CPU |
Chipset |
-H310 |
BIOS |
-AMI 128M Flash ROM |
Expansion Slot |
M.2 |
-1 (E key 2230,Support CNVi)
-1 (M Key 2242) |
SATA |
-1 |
PCI-e |
-1 * PCI-E x4 slot |
Memory |
Technology |
- Single channel DDR4 2133MHz DRAM |
Max. |
-64GB |
Socket |
-2*SO-DIMM |
Graphics |
Controller |
- Intel HD Graphics |
VRAM |
- Shared Memory |
VGA |
-1 (Max. Resolution: 1920xl200@60Hz) |
LVDS |
-1 (Co-lay eDP, Max. Resolution: 1920xl080@60Hz) |
eDP1.3 |
-1 (Co-lay LVDS, Max. Resolution: 4096x2304@60Hz) |
HDMI 1.4 |
-1 (Max Resolution : 4096x2160@30Hz) |
Multi Display |
- Dual Display |
Ethernet |
Ethernet |
-10/100/1000 Mbps |
Controller |
- Intel 1219-V + i211AT Gigabit LAN |
Connector |
- 2* RJ 45 |
Audio |
CODEC |
- HD Audio : Realtek ALC662VD |
Channel |
- Line-Out, MIC |
SATA |
Max Data Transfer Rate |
-1* SATAN III (6.0Gb/s) |
|
|
Rear I/O |
VGA |
-1 |
HDMI |
-1 |
Ethernet |
-2 |
USB |
-4* USB 3.0 |
Audio |
-1 (Line-out, MIC) |
DC-input |
-1 |
Internal Connector |
USB |
-5 (USB 2.0) |
PS/2 |
-1 |
LVDS / inverter |
-1 (Co-lay eDP) |
eDP |
-1 |
Serial |
- 4 (COM1/2 Support 5V/12V TTL) |
SATA |
-1* SATAN III (6.0Gb/s) |
M.2 |
- 2 (M key + E key) |
GPIO |
-1 (8 bit) |
Chassis intrusion |
-1 |
Audio Header |
-1 |
SMBUS/I2C |
-1 |
AT mode |
-1 |
Watchdog Timer |
|
Output |
- From Super I/O to drag RESETCON# |
Interval |
- 256 segments (lOsec ~ 255min) |
Power Requirements |
Input PWR |
-12 ~ 24V DC-in |
Power On |
AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready |
Certifications |
Certifications |
- CE, FCC, RoHS, REACH |
Environment |
Temperature |
- Operating: 0°C~60°C |
|
- Storage: -20°C~85°C |
Warranty |
Warranty |
- 2 Years Limited Warranty |
Packing |
Packing |
- Net Weight:
- Gross Weight:
- Color Box dimension: 362*290.5*65mm |
|
