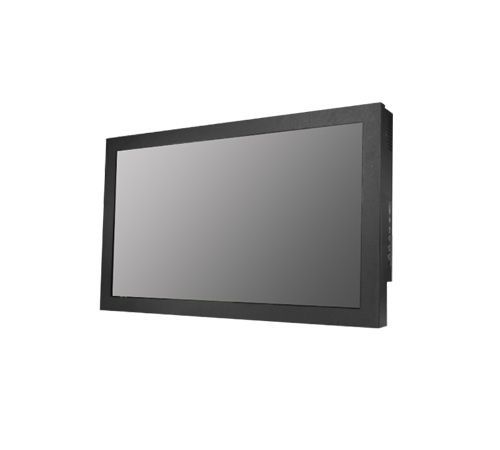

46" Military Grade Chassis Touch LCD Monitor w/ VGA, AC-IN w/ Built-In PCT, MIL-STD-810 / MIL-S-901D (Model: EMCMW4600V2-PCAP)

Military Grade Chassis, 46" LCD Monitor, 1920x1080, LED-350nits, VGA, AC-IN w/Built-in PWR Complaince to MIL-STD-810 and MIL-S-901D Built-In PCT with optical bonding protective 3mm film.

Military Grade Chassis, 46" LCD Monitor, 1920x1080, LED-350nits, VGA, AC-IN w/Built-in PWR Complaince to MIL-STD-810 and MIL-S-901D Built-In PCT with optical bonding protective 3mm film.

Inquiry/Quote Request
EMCMW4600V2-PCAP
  • Overview
  • Specifications
  • Download
The EMCMW4600V2-PCAP is a 46-inch military-grade chassis LCD monitor engineered for rugged and mission-critical applications. Built with a durable metal housing, high-resolution display, and projected capacitive (PCAP) touch technology, this monitor offers exceptional clarity, responsive interaction, and long-term performance in demanding environments such as military command centers, naval ships, and aerospace installations.


Features:
  • Modular mechanical design allows for flexible product configurations and simplifies maintenance.
  • Integrated touch screen supports interactive applications.
  • Auto-brightness sensor available, enabling optimal visibility in both day and night environments.
  • Standard VGA input, with optional AV, S-Video, and AV-looping connectivity.
  • Fully customized designs and solutions available for OEM customers.
  • Optional connectors include: MIL, M12, or IP69-rated plastic water-resistant connectors.
  • Compliant with MIL-STD-810 and MIL-S-901D standards.
Cell Type TFT LCD
Glass Surface Black Anti-Glare, low reflection coating
Aspect Ratio Wide
Size 46" viewable diagonal area
Active Area 1018.08(H) x 572.67(V) mm
Pixel Pitch 0.53(H) x 0.53(V) mm
Native Resolution 1920(H) x 1080(V)
Colors 16.7 M
Brightness 350
Contrast 3000 : 1
Response Time ≤ 8 ms (G-to-G)
Viewing Angle (typical) H. 178°(- 89°~ + 89°) , V. 178°(- 89°~ + 89°)
Light Source LED backlight, Long life, 35,000 hrs (typ)

CERTIFICATION
FCC , CE
INPUT TERMINALS
1 x VGA (15 Pin Female D-Sub)
CONVENIENT FEATURES
Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B) , OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
POWER
Internal power supply with universal / Auto-Sensing, AC90 to 260V, 50/60 Hz
POWER CONSUMPTION
Operation / Power Saving 117.2 watt , < 1 watt (Support DPMS)
OPERATING CONDITION
Temperature / Humidity 0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation)
STORAGE CONDITION
Temperature / Humidity -20°C ~ 60°C (-4°F ~ 140°F) , 10% ~ 90% (no condensation)
DIMENSIONS
Physical Please refer to Drawing
Carton W x H x D = TBD
WEIGHT
N.W. / G.W. 38 Kgs/41 Kgs
CONTAINER LOADED
20ft / 40ft / 40ft HQ TBD (Sets , By pallet)
