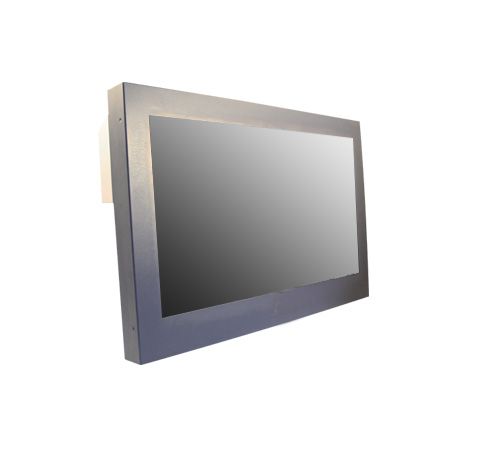

46" 2500nits Direct Sunlight Outdoor LCD Monitor w/ PCAP Touch with Clear Glass, VGA, HDMI, DP (Model: U4600HB2L1-PCAP)

Fully Work Under Direct Sunlight 46" LCD (High Tni Panel Enhancement to Prevent Isotropic Blackout under Direct Sun up to 110°C/230°F) Water/Dust/Rain Proof 2500nits Daylight Readable Rugged LCD PCAP Touch with Clear Glass

Fully Work Under Direct Sunlight 46" LCD (High Tni Panel Enhancement to Prevent Isotropic Blackout under Direct Sun up to 110°C/230°F) Water/Dust/Rain Proof 2500nits Daylight Readable Rugged LCD PCAP Touch with Clear Glass

Inquiry/Quote Request
U4600HB2L1-PCAP
  • Overview
  • Specifications
  • Download
The iTech 46-inch Direct Sunlight Outdoor LCD Monitor with Projected Capacitive (PCAP) touch delivers superior visibility and interactive performance in challenging outdoor environments. With an ultra-high brightness display, rugged weatherproof design, and responsive multi-touch technology, it is engineered for applications such as kiosks, wayfinding, transportation hubs, and digital signage in bright daylight conditions. This industrial-grade monitor ensures exceptional durability, clarity, and reliability even under direct sunlight.


Features:
  • 2500nits Completely Sunlight Viewable
  • Aluminum enclosures with Fan and filter / Front IP65, Bottom IP54 / Wall mount
  • P-CAP Touch with clear glass / IP65 for Front, Back / IP54 for Bottom
  • (High Tni Panel Enhancement to prevent isotropic blackout under direct Sun up to 110°C/230°F)
  • Circular polarized light enable through polarized sunglasses
  • Built-in Waterproof Speakers 10Watts x 2
  • Air curtain design inside/environmental board installation inside to reduct brightness 30% when inside Temp Reach at 50C
  • 3mm AR glass+3M Rejection film / eye bolt x 2EA
  • I/O ( normal type ) : VGA, HDMI, DP, USB ( for Touch use ) and  RS232 ( for remote control use ) and 100-240VAC power cord
  • I/O, 100-240VAC power cord ( for panel use )
  • NO Sun Shield
  • Remote Controller
  • Front Bezel Black and Rear Cover is light Grey color Painted color : Front bezel : black, Rear enclosures : light gray color ( RAL 7035 )
  • RS232 command code for remote control
  • Optional Integrated Touch screen, Computer, Heater, Portrait mode and CAT5 Video Extender
Display Size 46 Inch TFT-LCD
Resolution Capabilities 1920 x 1080 Full HD
Frame Rate 60Hz
Active Display Area 40.17" L x 22.62" H
Response Time 8ms typical
Viewing Angle 178°/178°
Contrast Ratio 4000 :1
Brightness 2500 cd/m2, Completely Daylight Viewable
Orientation Landscape Mode
Backlight 60,000 Hours Typical
Colors Supported 10bit 1.07 Billion
Interface VGA, HDMI, DP, USB ( for Touch use )
Audio Out 3.5mm Audio output
Speaker Included 10Watts x 2
Power Source 100-120VAC  50/60Hz
Power Consumption 245Watts (with heater 345 Watts)
Temperature Operating: 0° to 50°C
(Optional heater reach to -22F/-30C) Storage: -30° to 60°C
Humidity Operating: 5 to 90% NC Storage: 5 to 95% NC
Operating Time 24/7/365
Dimensions 45.1" L  x 28.68" H  x  6.14" D
Weight (Without Stand) 100lbs
IP Rating Enclosures IP65/NEMA4 (Except Bottom is IP54)
RS232 Control via command code
VESA Mount 600 x 300/ 400

Glass 3mm AR Glass +3M Rejection Film
Auto Power On/Off Yes
Auto Signal On/Off Yes
Options: Life time Anti Shock/ Anti Vibration IR Touch screen/ Projective Capacitive Touch/ Wide Temp PC/ CAT5 Video Extender/portrait mode/Stainless steel Life time 60K hours, operating Time 24 hours/Per day Anti Shock 30G, Anti Vibration 1G (2-200Hz)
Warranty Return to Depot Warranty1 year
