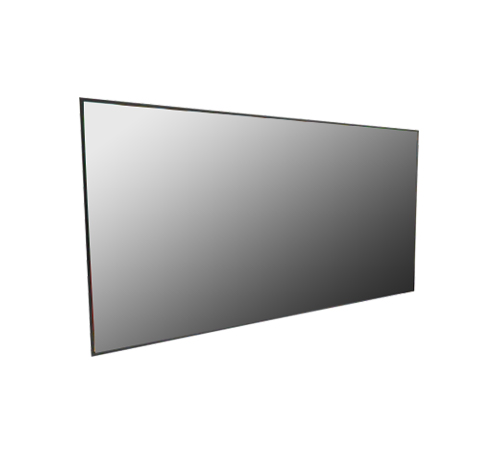

43" 4K 1000nits Close Frame Monitor w/ VGA, DVI, HDMI, DP, Auto Brightness Control (Model: GCHW4300HB-K)
43" 1000nits Close Frame Monitor, 4K Resolution, I/O: VGA/DVI/HDMI/DP Power: 100~240V AC-in, Local 12V Support, Auto Brightness Control VESA mounting design Accessories: 50cm Light Sensor Cable*1 AC (US) Power Cable*1, HDMI Cable*1
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
Features: |
|
| FUNCTION | ITEMS | DESCRIPTION | REMARK | |
| Display | Display area (mm) | 941.18 (H) x 529.42 (V) | 43" diagonal | |
| Brightness (nits) | 1000 | |||
| Optimum resolution | 3840x2160 | |||
| Contrast Ratio | 4000: 1 | |||
| View angle | 178 / 178 degree | |||
| Backlight Life | 50,000 hours | |||
| Touch panel | Type | N/A | ||
| Total thickness | N/A | |||
| Support OS | N/A | |||
| Video & audio | Video in | put | VGA / HDMI / DVI / DP | |
| Audio | Jack-in | Yes | ||
| Built-in speaker | (Option) | |||
| Control | OSD | 5 keys | ||
| RS232 | Yes / D-sub (9 pin) | |||
| Auto brightness | External sensor cable | (Option) Waterproof cover | ||
| Power | Power Input voltage | 100~240 VAC | ||
| Consumption(W) | 250 | |||
| Local output voltage | DC 12V | max 40W, 2EHDP-04P connector | ||
| Mechanical | Outline (mm) | 964.2 x 554.2 x 86.6 (D) | With handles | |
| Mounting | 400x400 (mm) VESA | |||
| Weight | (TBD) | |||
| Environment | Operating temp. | -20~50 °C | ||
| Storage temperature | -20~60 °C | |||
| Special items | N/A | |||
| Certification | CE | |||
