43" Full IP65 Stainless Steel Display, 1500nits, VGA, DVI, HDMI, PCAP Touch, 100-240VAC (Model: CCHW4300HB-SIP-TC)

43" 1920x1080 High Brightness 1500nits Stainless Steel 304 Enclosures  with Full IP65 with VGA, DVI, HDMI, USB (for Touch use) and 100-240VAC Power Input

43" 1920x1080 High Brightness 1500nits Stainless Steel 304 Enclosures with Full IP65 with VGA, DVI, HDMI, USB (for Touch use) and 100-240VAC Power Input

CCHW4300HB-SIP-TC
  • Overview
  • Specifications
  • Download

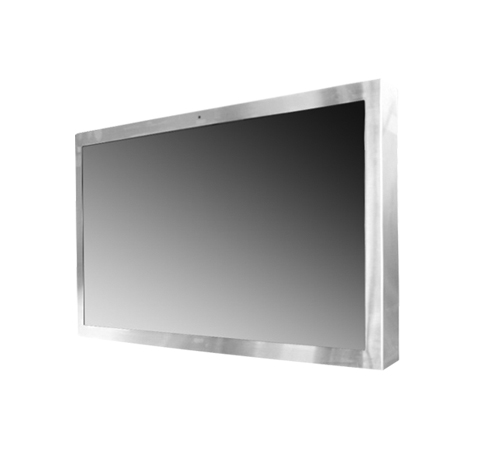

The CCHW4300HB-SIP-TC is a 43-inch high-brightness industrial touchscreen monitor built for harsh indoor and outdoor environments where durability and visibility are critical. Featuring a 1500-nit Full HD (1920x1080) display, a 304 stainless steel enclosure with full IP65 protection, and a projected capacitive (PCAP) touchscreen, it delivers exceptional performance in food processing, pharmaceutical, marine, factory automation, and washdown applications. Equipped with VGA, DVI, HDMI, USB touch connectivity, and a 100-240VAC power input, this rugged display provides reliable operation, corrosion resistance, and long-term industrial performance.


Features:

  • 43" Industrial Panel / 1920x1080 / 1500nits / High TNI
  • Operation Temp.: 0C to 50C
  • SUS 304 Enclosures with Full IP65 / Wall Mount
  • Air Curtain Design Inside
  • P-CAP Touch
  • I/O (all connectors are waterproof connectors / 6ft long): VGA, DVI, HDMI, USB (for Touch use) and 100-240VAC Power Input
Display Viewing Size Image 43"
Active Display Area (mm) 935 (H) x 528 (V)
Pixel Pitch (mm) 0.4902(H)x 0.4902(V)
Resolution 1920x1080
Contrast Ratio 1100:1(typ.)
Color 16.7 M
Brightness 1500 cd/m
Viewing Angle -89~89 (H) ; -89~89 (V)
 Recommended Resolution 1920 x 1080 @ 60Hz
Signal Connector VGA, DVI, HDMI, USB (for Touch use)

Power Source 100-240VAC Power Input
Consumption 49.28W typical, normal operation
Management VESA DPMS Compliant
