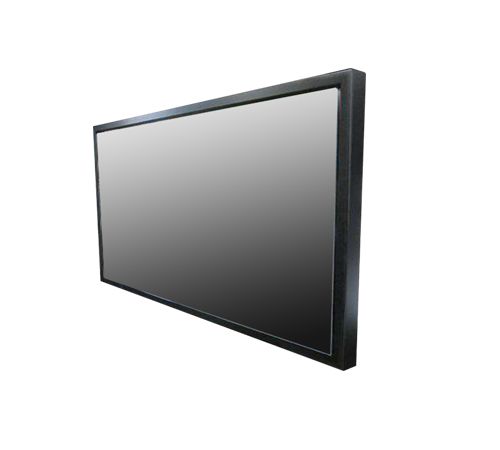

43" Fanless Front IP65 Panel PC w/ JNC8H-H310 / i7-8700T, RAM 32GB, HDD 1TB, Win 11 Pro, PCAP Touch (Model: CCPCW4300i7-TCW1)
43" Front IP65 Panel PC Industrial Panel / 1920x1080 / 450nits, Chassis Design with JNC8H-H310 / i7-8700T / RAM 32GB / HDD 1TB Win 11 Pro 64bit
CCPCW4300i7-TCW1
- Overview
- Specifications
- Download
| Display |
Viewing Size Image |
43" |
| Active Display Area (mm) |
942.20 (H) x 531.60 (V) |
| Pixel Pitch (mm) |
0.4902(H)x 0.4902(V) |
| Resolution |
1920x1080 |
| Contrast Ratio |
1100:1(typ.) |
| Color |
16.7 M |
| Brightness |
450 cd/m |
| Viewing Angle |
-89~89 (H) ; -89~89 (V) |
| Recommended Resolution |
1920 x 1080 @ 60Hz |
| Power |
Management |
VESA DPMS Compliant |
| Power Input |
100-240VAC Power Cord |
|
| |
Motherboard Specifications |
- Intel LGA1151 Socket Core i3,i5,i7 Pentium Processor (Max 65W)
- Intel Coffee Lake-S H310 Chip support 9th CPU
- Support Single Channel DDR4 2133MHz, up to 64GB
- Realtek ALC662VD Audio
- 1* Intel 1219-V + 1* Intel i211AT GbE
- 1* SATAIII (6Gb/s) & M.2 (M key 2242)
- HDMI/VGA/EDP (CO-lay LVDS) Output
- 4* RS232 (COM1/2 Support 5V/12V TTL), 4* External USB3.0, 5* Internal USB2.0
- 1* PCIe x4 Slot, 1* M.2 E key Support CNVi
- DC 12~24V Input
- Thin MINI ITX Form Factor (170 *170 mm)
|
| |
| Form Factor |
| Dimensions |
- Thin Mini ITX ( 170 * 170mm) |
| Processor System |
| CPU |
- Intel LGA1151 Series Processor (Max. 65W) |
| Core Number |
- by CPU |
| Max Speed |
- by CPU |
| L2 Cache |
- by CPU |
| Chipset |
-H310 |
| BIOS |
-AMI 128M Flash ROM |
| Expansion Slot |
| M.2 |
-1 (E key 2230,Support CNVi)
-1 (M Key 2242) |
| SATA |
-1 |
| PCI-e |
-1 * PCI-E x4 slot |
| Memory |
| Technology |
- Single channel DDR4 2133MHz DRAM |
| Max. |
-64GB |
| Socket |
-2*SO-DIMM |
| Graphics |
| Controller |
- Intel HD Graphics |
| VRAM |
- Shared Memory |
| VGA |
-1 (Max. Resolution: 1920xl200@60Hz) |
| LVDS |
-1 (Co-lay eDP, Max. Resolution: 1920xl080@60Hz) |
| eDP1.3 |
-1 (Co-lay LVDS, Max. Resolution: 4096x2304@60Hz) |
| HDMI 1.4 |
-1 (Max Resolution : 4096x2160@30Hz) |
| Multi Display |
- Dual Display |
| Ethernet |
| Ethernet |
-10/100/1000 Mbps |
| Controller |
- Intel 1219-V + i211AT Gigabit LAN |
| Connector |
- 2* RJ 45 |
| Audio |
| CODEC |
- HD Audio : Realtek ALC662VD |
| Channel |
- Line-Out, MIC |
| SATA |
| Max Data Transfer Rate |
-1* SATAN III (6.0Gb/s) |
|
| |
| Rear I/O |
| VGA |
-1 |
| HDMI |
-1 |
| Ethernet |
-2 |
| USB |
-4* USB 3.0 |
| Audio |
-1 (Line-out, MIC) |
| DC-input |
-1 |
| Internal Connector |
| USB |
-5 (USB 2.0) |
| PS/2 |
-1 |
| LVDS / inverter |
-1 (Co-lay eDP) |
| eDP |
-1 |
| Serial |
- 4 (COM1/2 Support 5V/12V TTL) |
| SATA |
-1* SATAN III (6.0Gb/s) |
| M.2 |
- 2 (M key + E key) |
| GPIO |
-1 (8 bit) |
| Chassis intrusion |
-1 |
| Audio Header |
-1 |
| SMBUS/I2C |
-1 |
| AT mode |
-1 |
| Watchdog Timer |
|
| Output |
- From Super I/O to drag RESETCON# |
| Interval |
- 256 segments (lOsec ~ 255min) |
| Power Requirements |
| Input PWR |
-100-240VAC input |
| Power On |
AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready |
| Certifications |
| Certifications |
- CE, FCC, RoHS, REACH |
| Environment |
| Temperature |
- Operating: 0°C~60°C |
| |
- Storage: -20°C~85°C |
| Warranty |
| Warranty |
- 2 Years Limited Warranty |
| Packing |
| Packing |
- Net Weight:
- Gross Weight:
- Color Box dimension: 362*290.5*65mm |
|
| |
