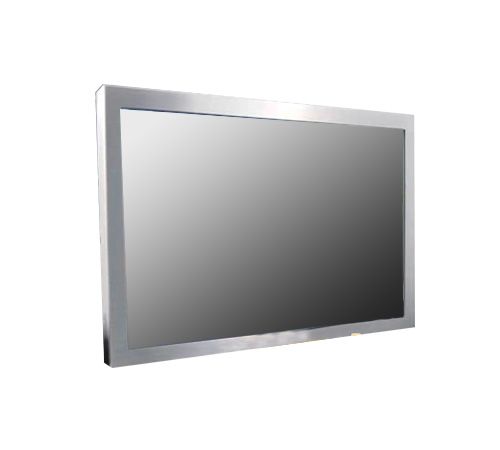

42.5" Stainless Steel LCD monitor LED backlight 1000nits w/ 2mm AR glass, VGA and DVI input. (Model: SCHW4250HB-SIP-V1)

Rugged Completely Sealed IP66/NEMA4X Stainless Steel Chassis/Surface Mount, 42.5" LCD monitor LED backlight, 1920 x 1080, 1000 nits, with 2mm AR glass, VGA and DVI input.

Rugged Completely Sealed IP66/NEMA4X Stainless Steel Chassis/Surface Mount, 42.5" LCD monitor LED backlight, 1920 x 1080, 1000 nits, with 2mm AR glass, VGA and DVI input.

Overview
Specifications
Download

Features:

Air Curtain between Glass and LCD
AR IR 3M Rejection film
Please make sure add shield at top and tilt at 15-20 degree down
Auto Light sensor location at the front middle.
Dual Input Power LCD AC 100~240 VAC input with a UK power cord. Heater Power 220VAC UK power cord
Operating Temp is -20 ~ 50C
Storage Temp -20C ~ 60C
Integrated Internal Heater Power 220VAC power cord with power switch.

Options:

Optional custom fitting for integrated computer Atom D2550 1.86
Hz, 32GB Wide temp SSD and 4GB Memory (DVI x 1 + RS232 x
1 + USB x 2 + POWER x 1 + LAN x 1
Optional Custom fitting for purging the monitor's enclosure
Optional for 9-36V DC input
Optional 5 Wired Resistive touch/ IR/ PCap Touch Screen (USB
Default/ RS232 per request controller)
Optional High Brightness 1000nits For Semi outdoor application
Optional for Auto Dimming Sensor
Optional for IR Remote Control with Front Sensor.
Optional Heater for lower temperatures -30C (-22F)
Optional Integrated VGA/ DVI Extender
Transmission length up to 1,000ft over CAT5e cable for VGA input
Transmission length up to 300ft over CAT5e cable for DVI input

LCD Display
Size / Panel Type	42.5" TFT LCD Panel
Resolution	1920 x 1080
Brightness (cd/m²)	1000 cd/m²
Contrast Ratio	4000 : 1
Response Time	6.5 ms
Backlight	LED backlight unit
Colors	16.7M colors
Viewing Angles	178°/178°
Surface Hardness	7~8H, AR Glass
Touch Screen (Optional)
Touch Screen Type	IP65 Front bezel if add IR Touch (Optional)
Surface Hardness	7~8H (AR Glass)
Environment
Operating Temperature	-20°C~+50÷C
Storage Temperature	-20°C~+60°C
Humidity	5%~95% RH(Non-Condensing)
Water-Proof Rating	IP66/NEMA4, 6 Side Water-Proof

System
OSD	Menu, Auto, On/Off, Up, Down
I/O Interface	VGA x 1, DVI x 1, Power in x 1
Power Input	LCD AC 100~240VAC input with a UK power cord. Heater Power 220VAC UK power cord
Power Consumption	138W
Certification	FCC/CE/RoHS Compliance
Dimension/Weight	1041.4mm (W) x 658.4mm (H) x 103.3mm (D)/37kgs

Accessories

Water proof VGA cables 6ft long x 1

Water proof DVI cables 6ft long x 1

External Power Adapter x 1
