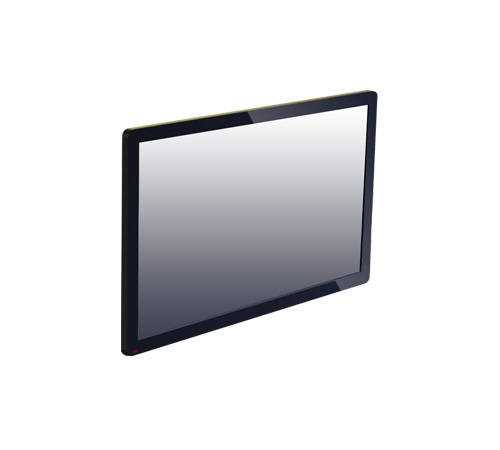

42" All in One PC Chassis Mount 380nits, iTXL-5105A Celeron N5105 w/ IR 10 Points Touch (Model: BCPCW4200HD-XL-OT)
All in One PC Chassis Mount, 42" LCD monitor, 1920 x 1080, 380 nits, GIGABYTE Mother Board Mother board - GiGAIPC iTXL-5105A, Celeron N5105 Processor up to 2.9GHz, 16GB ddr4 2666M hz memory, SSD 1TB SSD of storage + IR 10 points Touch screen 4 mm optical glass
BCPCW4200HD-XL-OT
| LCD SPECIFICATIONS |
| Viewable Size Image |
42" (16:9) |
| Active Display Area(mm) |
930.24(H) x 523.26(V) |
| Number of Pixels |
1920 x 1080 |
| Contrast Ratio |
3000 : 1 |
| Display Color |
16.7 million |
| Brightness(cd/m) |
380 |
| Viewing Angle |
R/L178° x U/D178° |
| Recommended Resolution |
1920 x 1080 |
| Response time |
6.5 ms |
| Life time |
30,000/hr |
| Signal Input |
1 x VGA,1 x DVI |
| Signal Output |
2 x HDMI |
|
| |
| MECHANICAL |
| Operating Temp. |
0°~50°C |
| Humidity |
20~80% RH |
| Store Temp. |
-20°~55°C |
| Dimensions(mm) |
1012(L)x606(W)x117(D) |
| Wall Mount(LxW/mm) |
600(L) x 200(W) |
| Color |
Black |
|
| |
| SYSTEM SPECIFICATIONS |
| CPU |
Intel Core Celeron N 5105 |
| Mother Board |
iTXL-5105A |
| RAM |
16GB DDR4 2666 Mhz |
| Storage |
1TB SSD |
| USB Port |
6 x USB 2.0 Port |
| PC Audio output |
Realtek ALC897 audio codec |
| Speaker Output |
2 x 5 w internal speaker |
| LAN Port |
2 x RJ-45 10/100/1000 (Mbit) |
| WIFI |
IEEE 802.11b/g/n (option) |
| Touch Screen |
IR Touch 10 points Touch screen
4mm Optical Glass |
|
| |
| INFRATED TOUCH (Options) |
Windows 11 and MAC OS X, Linux, Android etc.
Support panels of flat type for LCD. |
| Touch Points |
2, 4, 6, 10, 16, 20 points touch. (Options) |
| Operating Temp. |
-20°C ~ 60°C. |
| Operating Hum. |
10%~90% RH |
| Storage Temp. |
-40°C ~ 85°C |
| Touch Activation Force |
No pressure required. |
| Touch Accuracy |
± 2mm on more than 95% touch area. |
| Response time |
First click<16ms, Repeated click<6ms. |
| Light-proof Capacity |
Resisting lights from all angles |
| Input Method |
Fingers, stylus, gloves or any other opaque material medium. |
| Hohs' hardness rating |
7 |
| Break Resistance |
3mm Heat Tempered Glass.
Meets UL-1950 Steel Ball Drop Test. |
| Light Transmission >92%. |
(per ASTM D1003) |
|
| |
| ACCESSORIES |
| DVI TO HDMI Wire x 1 |
| 3.5" Audio Wire x 1 |
| Power Core x 1 |
|
| |
| POWER |
| Power Input |
Support panels of flat type for LCD. |
| Power Consumption |
85W |
|
