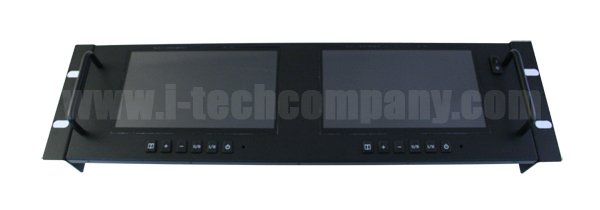

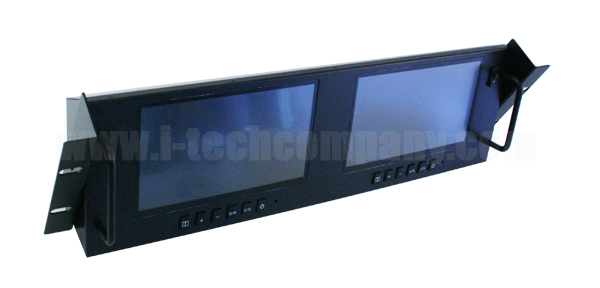

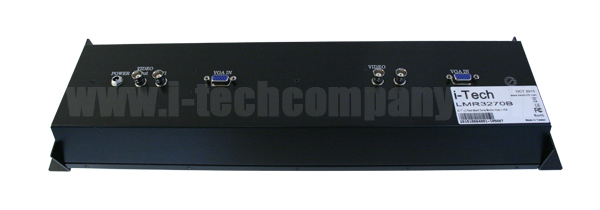

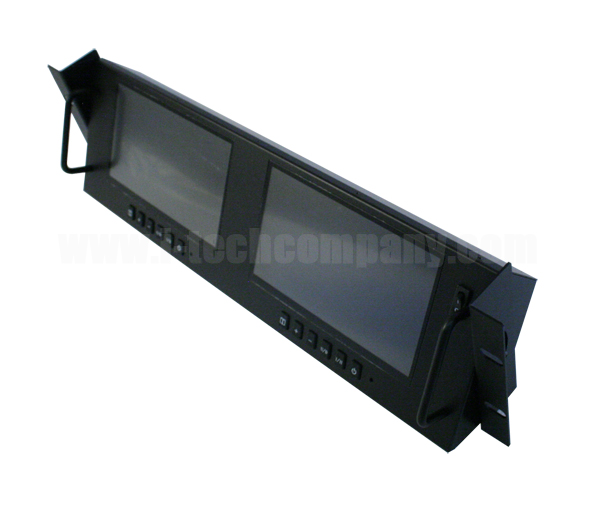

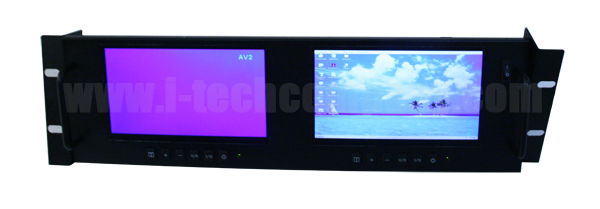

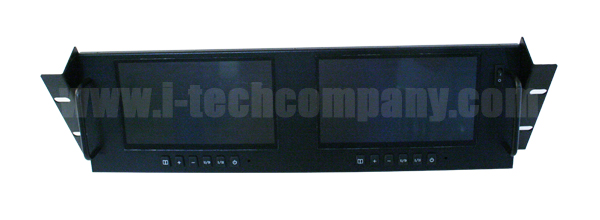

3U 7" x 2 Rack Mount Serial Monitor Video + VGA (Model: LMR3270B)

DISPLAY SCREEN
SIZE:  7 INCH (LED)
ACTIVE AREA: 154.08(W)x86.58(H)
ELEMENT: COLOR TFT LCD
RESOLUTION: 1440(W) x 234(H)
DOT PITCH: 0.107(W) x 0.370(H)

VIDEO SYSTEM: NTSC or PAL System
NTSC                                            PAL
f H : 15.75 Khz                             f H : 15.625 Khz
f V : 60 Hz                                   f V : 50 Hz
f c : 3.58 MHz                             f c : 4.43 MHz

POWER SOURCE: DC 12V
VIEWING ANGLE: Vertical+10 Deg/ -30 Deg / Horizontal 45 ± Deg
BRIGHTNESS: 280 cd/m2
POWER CONSUMPTION: 7W Max.
OPERATING TEMPERATURE: -40℃ ~ 95℃
STORAGE TEMPERATURE: -30℃ ~ 85℃
LCD SCREEN: 195.70(W) x 136.20(H) x 36(D) (mm)
OVERALL DIMENSION: 489.00(W) x 131.82 (H) X 66.00 (D) (mm)
WEIGHT: 3500 ±10 g
