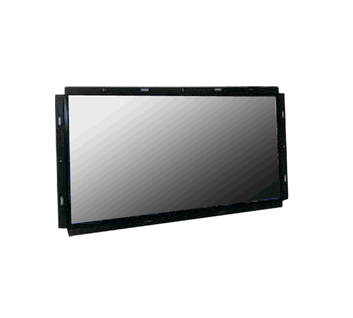

32" Open Frame Monitor Metal Chassis 2500nits with Rear VESA mount & Rear Mount Design (Model: GOPW3200HB3V2)

32" Open Frame Monitor Metal Chassis 1920x1080, 2500nits Brightness with rear VESA mount and Rear mount design

32" Open Frame Monitor Metal Chassis 1920x1080, 2500nits Brightness with rear VESA mount and Rear mount design

Main Feature

    • 32" LCD support 1920x1080 FHD resolution
    • 2500 nits high brightness
    • Direct backlight with 100,000 Hrs long operation life
    • 4000:1 High contrast ratio
    • Extra wide 178 /178 view angle
    • Video signal IO: VGA / DVI / HDMI
    • Auto brightness, temperature, RS232 control
    • VESA mount, detachable ear mount for easy installation
Inquiry/Quote Request
GOPW3200HB3V2
  • Specifications
  • Download
  • Contact Sales
Function Items Description Remark
Display Display area (mm) 698.4(H) x 392.85(V) 31.5" 16:9 diagonal
Brightness (nits) 2500
Optimum resolution 1920x1080
Contrast Ratio 4000:1
View angle (HA/) 178/178 degree All direction
Backlight Life 100,000 hours (typ.)
System Video input VGA/DVI/HDMI
Video output N/A
Audio output Built-in (Option) 5WR/L
  Extend N/A
Memory N/A
Storage N/A
Ethernet N/A
Wireless N/A
Touch panel Type N/A
Protection glass N/A
Support OS N/A
Special Control Manual (Option)
OSD 5 keys on the back
RS232 YES OSD control
Display feedback N/A
Power Power Input voltage AC 100-240V
Consumption(W) 220 (typ.)
Mechanical Outline (mm) 760.0 x 453.8 x 68.7(D) Exclude handles
Mounting Ear mounting (Option) 300x200 (mm) VESA
Others N/A
Environment       Operating temp. -10-50 °C
Storage temperature -20-60 °C
IP protection N/A
Anti-vandal (TBD)
Auto brightness Yes By external light sensor cable
Outdoor visibility enhance (Option)
Direct sunlight N/A
Certification CE. FCC


Accessories for option:


Signal Cables
Product Description
VGA cable M to M, 1.5 M
DVI cable M to M, 1.8M
HDMI cable M to M, 1.2M
USB 2.0 cable Type A to Type A, 1.8M; for touch

Power adapter & AC cables:
Product Description
Power adapter l/P:100~240V; 0/P:24V (60W); (US3/EU3)
Power adapter l/P:100~240V; 0/P:24V (90W); (US3/EU3)
Power adapter l/P:100~240V; 0/P:12V (40W); (US3/EU3)
Power adapter l/P:100~240V; 0/P:12V (60W); (US2/EU2)
Power adapter l/P:100~240V; 0/P:12V (60W); (US3/EU3)
- -
AC cable (US) (US3)1.8M, US type plug
AC cable (US) (US2)1.5M, US type plug
AC cable (EU) (EU3) 1.8M, EU type plug
AC cable (EU) (EU2) 1.5M, EU type plug

Table Stand
Product Description
Table stand (S) 203(W)*213(H)*227(D)mm/ VESA 75x75 mm
