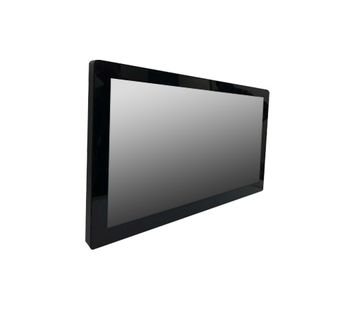

32" High Brightness 2000nits LCD, PCAP Touch, IP65 Chassis w/ DP/HDMI/VGA/DP (Model: GCHW3200P-T)
32" IP65 Outdoor Touch Monitor with 2000nits(typ.) Brightness, 1920*1080 Resolution, I/O: VGA/DVI/HDMI/DP, Power: 100~240 VAC-In, Accessories: HDMI Cable x1, USB Cable*1, AC Power Cable*1, Light Sensor Cable*1
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| The GCHW3200P-T from iTech is a 32-inch high brightness LCD monitor engineered for industrial and outdoor environments. Featuring an IP65-rated front bezel and projected capacitive touch technology, this chassis-style monitor delivers reliable performance in harsh conditions. With a vivid display, robust construction, and user-friendly interface, the GCHW3200P-T is perfect for applications requiring enhanced visibility and rugged durability. |
Features: |
|
| FUNCTION | ITEMS | DESCRIPTION | REMARK |
| Display | Display area (mm) | 698.4(H) x 392.85(V) | 31.5" 16:9 diagonal |
| Brightness (nits) | 2000 | TFT surface | |
| Optimum resolution | 1920 x 1080 | ||
| Contrast Ratio | 1200:1 | ||
| View angle (H/V) | 178 / 178 degree | All direction | |
| Backlight Life | 70,000 hours (min) | ||
| Touch panel / Cover glass |
Type | PCAP | |
| Protection glass | 4.3 mm | Tempered, Anti-vandal | |
| Support OS | Windows / Linux / Android | Via USB type B (F) | |
| Video & audio | Video input | VGA / DP / HDMI / DVI | |
| Audio jack in | Yes | ||
| Built-in speaker | (option) | ||
| Control | OSD | (option) | |
| RS232 | (option) | ||
| Auto brightness | Yes | ||
| Power | Power Input voltage | AC 100~240V | |
| Consumption(W) | 100 (TBD) | ||
| Mechanical | Outline (mm) | 769.1 x 468.7 x 87.9 (D) | |
| Mounting | 300 x 400 (mm) VESA | ||
| Weight | (TBD) | SECC, outdoor painting | |
| Environment | Operating temp. | -20~45 °C | TFT surface to 800C |
| Storage temperature | -30~60 °C | ||
| IP protection | IP65 chassis | ||
| Anti-vandal | Yes | IK8+ | |
| Outdoor visibility enhance | (Option) AG / AR / UV block / IR block | ||
| Certification | CE / FCC |
