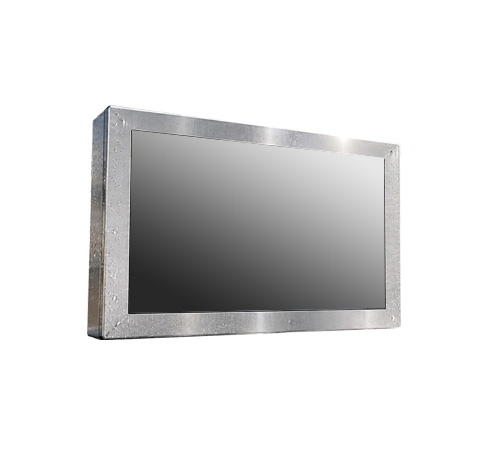

32" 2500nits Full IP66 Stainless Steel Panel PC w/ JLI1BV-0L / J6412, RAM 4GB / SSD 256GB, Win 11 Pro (Model: CCHW3200H2-L-J)

32" High TNI 2500nits Full IP66 Stainless Steel Panel PC with JLI1BV-0L / J6412 Intel Celeron, RAM 4GB / SSD 256GB, Win 11 Pro

32" High TNI 2500nits Full IP66 Stainless Steel Panel PC with JLI1BV-0L / J6412 Intel Celeron, RAM 4GB / SSD 256GB, Win 11 Pro

Inquiry/Quote Request
CCHW3200H2-L-J
  • Overview
  • Specifications
  • Download
The IP66 NEMA 4X Fully Enclosed All-in-One Industrial PC is designed for industrial environments where protection against dust, water, and demanding operating conditions is essential. Its fully enclosed construction helps protect internal components from environmental contaminants, making it suitable for applications in manufacturing facilities, food processing plants, pharmaceutical production, and other industrial settings that require reliable computing equipment.

Featuring an IP66-rated enclosure and NEMA 4X protection, this industrial all-in-one PC is designed to resist dust ingress, powerful water jets, and corrosion under specified test conditions. Its integrated computing and display design provides a space-saving solution that reduces the need for separate monitors and computers, simplifying installation and system integration.


Features:
  • 32" industrial panel / 1920 x 1080 / 2500nits / High TNI / Landscape
  • Operation Temp. : -15C to 50C ( with Heater)
  • SUS 304 enclosures with Full IP66 / wall mount
  • AR glass with 3M Rejection film
  • Air curtain design inside / venting valve x 2pcs / eye bolt
  • Environmental board installation inside ( reduce brightness to  30% when inside Temp. reach at 40C )
  • Fanless Design
  • JLI1BV-0L / J6412 ( 4M Cache, up to 2.60GHz Intel Celeron Processor ) / RAM 4GB / SSD 256GB
  • I/O ( all connectors are IP67 waterproof connectors / 6ft cable length ) : VGA x1, USB x1, LAN x1, RS232 x1 and 100-240VAC power input
  • Win 11 Pro 64bit installation
  • Added Silica gel bags inside to reduce the moisture
  • Added thermal pad / insulation sheet inside the back enclosures cover
  • Removed the inside air from venting valve in the final installation step
  • Sun hood
  • Blanket heater ( 510W / 100 or 220VAC ) / Temp. Controller ( 5C_ON, 15C_OFF ) / Heater ON_OFF switch /  waterproof  AC power cord It has the separated Heater Power ON/OFF switch to avoid condensation issue.
Display Viewing Size Image 32"
Active Display Area (mm) 701 (H) x 396 (V)
Pixel Pitch (mm) 0.3638(H)x 0.3638(V)
Resolution 1920 x 1080
Contrast Ratio 3000 : 1 (typ.)
Color 16.7 M(8bits+colors)
Brightness 2500 cd/㎡
Viewing Angle -89~89 (H) ; -89~89(V)
Recommended Resolution 1920 x 1080 @ 60Hz
Input/Output VGA x1, USB x1, LAN x1, RS232 x1
Power Source 100-240VAC power input
Consumption 75W typical, normal operation
Management VESA DPMS Compliant
