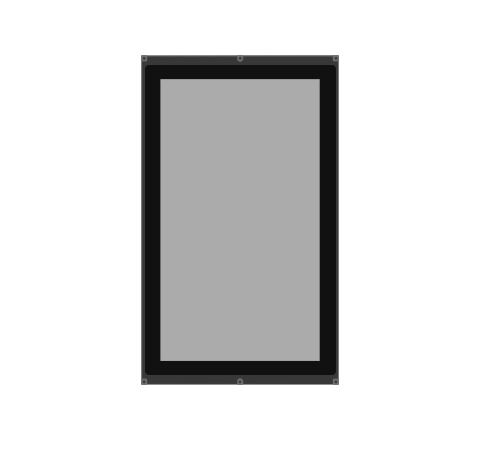

32" 1500nits Front IP66 Portrait Mode Flush Mount LCD Monitor w/ VGA+DVI+HDMI, PCAP Touch (Model: YCHW3200PHB-PCAP)
32" LCD Monitor/ Front IP66 / 1920x1080 / 1500nits LED / High Tni Liquid Crystal (-40~110C) / Operating Temp -20~60C / VGA+DVI+HDMI Signal Input, AG coating and Anti-UV PCAP Touch Screen with USB controller, Air Curtain between LCD Panel and touch screen
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| The YCHW3200PHB-PCAP is a 32-inch flush mount LCD monitor engineered for portrait mode display in harsh environments. With an IP66-rated front panel, high brightness screen, and projected capacitive (PCAP) touch technology, this monitor delivers reliability and clarity in both industrial and commercial settings. Its sleek flush design ensures seamless integration into kiosks, control panels, and outdoor enclosures where durability and performance are essential. |
Features: |
|
| ITEM | SPECIFICATION |
| Panel Type | 32-inch TFT LCD |
| Screen Diagonal | 32-inch |
| Active Display Area (mm) | 698.4 (H) x 392.85(V) |
| Pixel Pitch (mm) | 0.3637 (H) x 0.3637 (W) |
| Number of Pixels | 1,920x1,080 |
| Contrast Ratio | 4000:1 |
| Display Color | 16.7M colors (8 bit) |
| Brightness (cd/m) | 1500 cd/m |
| Viewing Angle(Typ.) | 89 / 89 / 89 / 89 ( R/L/U/D) |
| Signal Connector | VGA+DVI+HDMI |
| Power Source | (DC 24V / 3.5A) |
| Power Consumptions | 84 Watts (Max.) |
| Power Management | VESA DPMS Compliant |
| Operating Temperature | -20°C to 60°C |
| Plug & Play | VESA DDC 1/2B |
High Quality Parts
i-Tech company uses only the best Industrial LCD and High Quality embedded Panel PC parts along with rugged components in USA or imported from Korea and Taiwan , for most reliable quality that you can trust!
Customer Service
i-Tech customer service reps are here to help you with your inquiry for Industrial monitors, panel pc, and outdoor LCD. From any general questions to technical support, we leave you feeling completely satisfied with our excellent LCD quality as well.
US Based Company
Most of i-Tech’s High Brightness LCD and Rugged Panel PC Products are assembled, tested and shipped from our very own factory in CA USA, giving us the ability to customize the systems to your needs.
